Product Description:

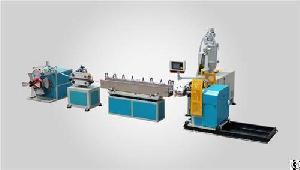

PVC Soft Hose production line
Product description:
1. Applied Resin: PVC granule and some additives
2.
Product: PVC soft tube
3. Specification: under 20mm
4. Output: ~50Kg/h
Environmental conditions
Location: Indoor
Power source: No dangerous area
Humidity level: 85%, non-condensing
Temperature: 0-35℃
Protection mode: Earth
Conditions of usage:
Power source: three-phase, four-wire, 380V, 50HZ
Circulating water: 0.3Mpa, 2-4m³/h
Compressed air: 0.5MPa, 0.4m³/min.
Installed gross power: about 38KW
Power consumption: about 20-25KW/h
Central height of the extruder: 1000mm
Equipment installed dimension:10000mm×700mm×3000mm
Direction of the operation: from right to left
Equipment list:
No Item Quantity (set)
1 Auto feeder and dryer 1
2 SJ-45/28 Single Screw Extruder 1
3 Extrusion mould 1
4 Cooling wtar tank 1
5 Haul-off machine 1
6 Double-station winder 1
7 Electrical cabinet 1
More machine's details and video will be provided when you contact me by E-mail. Looking forward to your contact.
