Product Description:

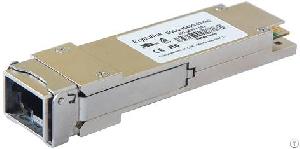

Eoptolink QSFP+ (Quad Small Form-factor Pluggable Plus) is a new Multi-Source Agreement (MSA) for high
speed application, such as 40G-BASE, which provide four channels of data in one pluggable interface. Each channel is capable of transferring data at 10Gbps and supports a total of 40Gbps.
The 40Gbps QSFP+ transceiver is well suited for Infiniband and 40GBASE-SR4 / 40GBASE-LR4 applications. It combines the higher density attractions of parallel modules with some of the key advantages normally associated with SFP+ based modules. It is intended for use short reach applications in switches, routers and data center equipment where it provides higher density and lower cost when compared with standard SFP+ modules.
EOLQ-8540G-02 Series QSFP SR4 / QSFP+ SR4 / QSFP 40G SR4 It is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector. The optical interface uses an 8 or 12 fiber MTP (MPO) connector.
EOLQ-1640G-10 Series QSFP LR4 / QSFP+ LR4 / QSFP 40G LR4 It is designed to operate over singlemode fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 10km.
EOLQ-1640G-20 Series QSFP LR4 / QSFP+ LR4 / QSFP 40G LR4 It is designed to operate over singlemode fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 20km.
EOLQ-1640G-40 Series QSFP ER4 / QSFP+ ER4 / QSFP 40G ER4 It is designed to operate over singlemode fiber system using four 10Gbps CWDM channel in 1300 band. Which is based on two LC connectors for optical connectivity and supports 40Gbps data rate links of up to 40km.
Application:
High-speed interconnects within and between switches, routers and transport equipment
Server-Server Clusters, Super-computing interconnections
Proprietary backplanes
Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane
40GBASE-LR4 Ethernet links
10GBASE-SR applications
40GBASE-SR4 applications
40GBASE-ER4 Ethernet links
InfiniBand SDR, DDR and QDR applications
Features:
QSFP+ MSA, SFF-8436 compatible
Four independently addressable transmit and receive channels
Highly compact: savings of 60% on edge and board usage compared to four comparable SFP+ modules
Electrically hot-pluggable
XFP-like latch mechanism for ease-of-insertion
Digital Diagnostics Monitoring Interface. allows customer management and monitoring of key modules parameters, analogous to SFP+
Optical connectivity via industry standard MPO/MTP terminated fiber ribbon
Ordering information:
-vendor support
