Product Description:

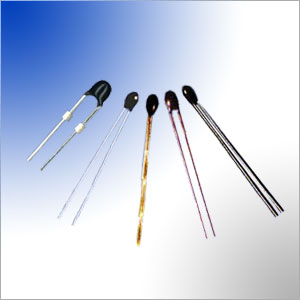

Radial Leaded, Epoxy Resin coated NTC Thermistor Description:
AMF52 series NTC thermistor in Radial
Leaded, Epoxy Resin coated form, Standard pin wire is tinned copper brass wire, optional in tinned kinked steel wire, PVC wire, PTFE wire. Widely applied in temperature sensing, measurement, detection, indicator, monitoring, gauging, control, calibration and compensation, etc., suitable for HVAC and white goods, automotive, battery pack application.
Radial Leaded, Epoxy Resin coated NTC Thermistor Features
·Tight tolerance on resistance and Beta value.
·High measurement accuracy.
·Fast response, small dimension.
·Can operate in long time stability.
·Nominal resistance @25C can be from 2kΩ—150kΩ.
·Operating temperature range: -45 ~ +125℃
Radial Leaded, Epoxy Resin coated NTC Thermistor Application
In household electronics temperature measurement, detection and control: such as air conditioner, refrigerator, deep freezer, soybean milk machine, bread machine, drinking machine, etc.
Medical equipment and apparatus temperature sensing and measurement .
Temperature control instrument.
Electronic temperature humidity meter.
Automobile temperature measurement.
Electronic table calendar.
Battery pack and battery charger temperature measurement, compensation, control and protection.
