Rain Spray Test Chamber
Posted at: Offers to Sell and Export | Posted on: Thursday 26 August 2021 10:08 am | Poster last visit: Tuesday 29 October 2024 | Targeted Countries: Asia Pacific Region | Russia | Ukraine
Product Category: Main
» Laboratory and Measuring and Observing and Testing Equipment
» Laboratory and scientific equipment
» Laboratory environmental conditioning equipment
» Heated reach in environmental or growth chambers
» Rain Spray Test Chamber
Product Description:

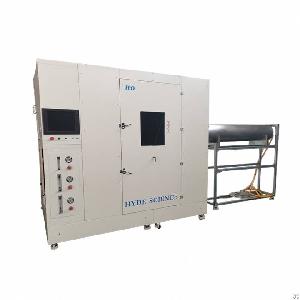

Rain spray test chamber
This chamber is used to test the moisture permeability of specimen during rain.
The testing conditions of this chamber are similar to the actual conditions outside.
Model HD-LY305J HD-LY310J
Internal volume 512 L 1000 L
Internal dimensions (D*W*H) 800*800*800 mm 1000*1000*1000 mm
Standard IPX1, IPX2, IPX3, IPX4, IPX5, IPX6
Intensity of falling drops (rain) from 1 to 15 mm/min
Accuracy of falling drops (rain) ± 0.5 mm/min
Swing pipe water flow (per nozzle) 0.07 ± 0.5% L/min
IPX1 / 2 test
The number of droppers in the container Not less than 2500
Dripper diameter 0.4 mm
Dripper length 15mm
Diameter of the falling drops hole 0.4 mm
IPX3 / 4 test
Sprinkler tube radius 800mm
Pipe swing speed 10 ~ 60 ° / s
Distance between nozzles in the pipe 50mm
Diameter of nozzles in the pipe 0.4 mm
Swing pipe pressure sensor 0 ~ 1.6 bar
IPX5 / 6 test
IPX5 spray nozzle Ф 6.3 mm
IPX6 spray nozzle Ф 12.5 mm, nozzle Threaded, easy to change.
IPX5 spray volume 12.5±0.625 L/min
IPX6 spray volume 100±5 L/min
Spray distance 2.5 meter(from spray nozzle to the center of turning table)
Water pressure According to technical requirement
Temperature range Room temperature
Nozzle diameter 0.3~0.4 mm
Spray volume 2 L/min.
Nozzle pressure 60~100 kPa
Rotating speed of rotating table 1～10r/min, adjustable
Diameter of rotating table Φ350 mm
Internal material Stainless steel
External material Cold rolled sheet steel or stainless steel
Observation window 230*260 mm
Control system Touch screen, programmable controller
Power supply AC 220V±10%, 50±0.5Hz
