Product Description:

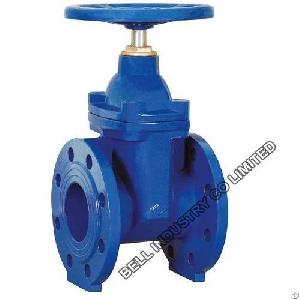

Resilient Seated Gate Valve DIN3202 F4 F5 Ductile Iron
Resilient-seated gate valves according to European
standard EN 1171 with straight, smooth and non-constricted passage. Internally enamel, externally EKB. For water, air and non-aggressive gases
-Design : EN 1171
-Size : DN40--DN1000
-Pressure Rating : PN16, PN10
-Seat : NBR, EPDM, VITON, PTFE, NEOPRENE
-Blue RAL 5015 epoxy powder coating electrostatically applied - 250 microns.
-Face to Face : DIN EN 558 – 1 series 14 / 15 (DIN 3202 – F4 & F5)
-Pressure Testing : DIN EN593 / DIN EN12266-1
-Body/Bonnet : Ductile iron EN-GJS-500-7 / EN 1563
-Flange Ends : DIN EN 1092 – 2 (DIN 2501)
-Working temperature : -10 to +120
