Product Description:
Raw water pump BJZ037 SUS-304
A.Flow: 1.0m3 / H, Head: 27m, K = 0.55kw
B.include: Inlet/outlet water
valve, pipe etc.U-PVC 1 batch
Quartz sand filter φ250×1450
Activated carbon filter φ250×1450
A. Tank Material: FRP 1 pc
B. Manual control valve F56A 1 pc
Security filter 1set
A.Type: 20 "× 1 core, material:PVC 2 pcs
B.PP Filter Cartridge: 5μm 2 pcs
High-pressure pump CDLS2-11 SUS-304 1 pc
A. Flow: 1.0 m3 / h, head: 80m, K =1.1KW

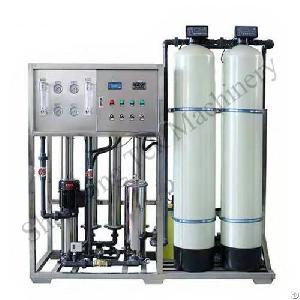

Reverse osmosis water system Capacity: 0.50m3/ h, maximum working pressure: 1.5MPa, desalination rate: 97%, system water use efficiency: ≥ 50%
A. Membrane components 4040 Material: SUS-304Domestic 2 pcs
B. Membrane LCLE-4040 USA Dow 2 pcs
C. Stainless steel rack 1 pc
D. Panel flow meter 5GPM 2 pcs
E. Instruments, meters 1 batch
F. Water conductivity meter CM-230 1 pc
G. Inlet water solenoid valve DN20 1 pc
H. Dense water solenoid valve DN15 1 pc
I. Valves, pipe U-PVC 1 batch
Electronic Control System 1set
General control cabinet: PC program controller, air
switch, AC contactors, thermal relays, lights, knob
switches, pressure switches, level switches etc
Filler A.quartz sand Domestic 100kg
B.activated carbon Domestic 25kg
Scene valves, U-PVC pipe Domestic 1 batch
UV sterilizer 14w 1set
A. The quotation process and equipment is meet client’s requirements as following:
1.Raw water quality:Borehole water TDS less than 2000ppm
2.Output water application:Pure drinking water
3.Reverse osmosis system product water:500L / H (water production basis on water temperature 25℃).
4.Reverse osmosis water TDS: ≤60ppm (local raw water TDS ≤2000ppm; Reverse osmosis desalination rate ≥ 97%.
B. the system is for the outside request:
(1) water flow: running water ≥ 1.0m3 / h
(2) recoil water: about 1.0 m3 / h
(3) Power supply:
(4) total power capacity about: 1.7KW
C. Process:
raw water→ raw water pump→quartz sand filter→activated carbon filter→security filter→high pressure pump→ro system→water supply point
(A) Advantages:
1.Can run and produce water continuously, highly automatic
2.No need chemical to regeneration, easy operation and maintenance
3.RO system uses imported USA DOW membrane
4.Automatic switch on when lack of water, and switch off when no water or full of water
5.RO membrane auto wash and reduce the pollution speed.
6.Low-pressure switch protects high-pressure pump from damage when water supply stops.
7.Production water conductivity meter monitors water quality online continuously.
8.Input water and dense water pressure meters, monitor the RO differential pressure and remind the time of washing.
(B)Features:
1.Desalination Rate:97%
2.Low Operation Cost and Long life span
3.Reliable and stable
4.Easily control and Maintained.
5.Auto membrane flushing
6.Environmental protection
