Product Description:

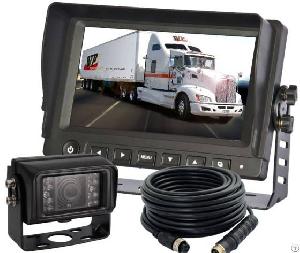

Truck Reversing Camera Monitor System
Truck Reversing Camera Monitor System for Heavy Truck, HVG, Caravan,
RV, Lorry, Oil Tank Truck, Dry Bulk Tanker, Liquid Tanker, Tipping Truck, Van Truck, Car Carrier Truck, Curtainsider Rigid Truck, Car Carrier Truck
7" Digital Screen TFT LCD Monitor Free Operating Voltage DC11-32V, DC14+87V(Td400mS) 5pulses Load Dump, 400cd/m2 Brightness
Application USA Techwell Automotive Digital Video Processor, OSD Menu Separately Set Each Camera Mirror/Normal image, Trigger Priority of Camera1 image Display, Reversing Image Delay Time 0-30"
480 TV Lines High Definition Camera with 18pcs IR LED's Waterproof IP69K
7 inches Digital Screen TFT LCD Color Monitor (Model:SP-760)
7"Digital Screen TFT LCD Color Monitor with Removable Sun Visor
Camera1 Trigger Priority
OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30s
OSD MENU Separately Set Each Camera Mirror/Normal image
Manual and Automatic Switch Display Mode
Color System:PAL/NTSC (AUTO)
Display Resolution: 800RGB(H) X 480(V) dot
Support Two Camera Video Inputs:1.0Vp-p75Ω
Wide view angle(CR:10):(up/ down): 45/65 (left/right): 65/65
Brightness (cd/m2): 400
Contrast ratio: 500:1
Back-light:Single LED
Operating temperature: -20℃ to +70℃
Storage temperature: -30℃ to +80℃
Load Dump: DC14+87V(Td400mS) 5pulses
Free Operating Voltage DC11-32V
External dimensions: (L x W x T) (199 x 128 x 28mm) without mounting Sun Visor
Weight Approx: 379g
Aluminum Shell Waterproof IR Color CCD Camera(MODEL:DF-8078)
Image Type : 1/3 inch High Definition Color CCD
Horizontal Resolution:480TV Lines
Effective pixel:PAL:720(H)*586(V), NTSC:720(H)*480(V)
Usable Illumination : 0Lux( Built in 18pcs IR LED’s for Picture Support in the Dark)
Free viewing angle: 130°
Waterproof: IP69K
Shockproof: 10G
Video Output:1.0Vp-p75Ω
Automatic Heating Below +10oC(Options)
Power supply:DC12V (from Reversing Monitor)
Dimensions: 69(W) x 43(H) x 38(D) mm (without mounting)
Accessories
U- Support Bracket、Angle Adjustment Screw、Removable Sun Visor、Electrical Connecting Cable、15m cable、 Auto cigarette lighter、User's Manual
