Product Description:

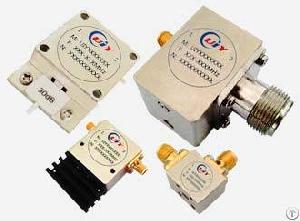

Broadband Isolator
•Frequency Range 56MHz to 26.5GHz, Up to 2000W Power.
•Military, Space and Commercial
Applications.
•Low insertion Loss, High Isolation, High power handling.
•Custom Design Available Upon Request.
Specification :
Coaxial type from 56MHz to 26.5GHz(such as 56~86MHz, 68~88MHz, ... 600~800MHz, 700~900MHz, ... 1225~1875MHz, 0.8~2.0GHz, 1.0~2.0GHz, ... 1.8~2.4GHz, 2.0~4.0GHz, ... 12.0~18.0GHz, 18.0~26.5GHz)
Model No.: UIYBCI6466B
Freq.Range(MHz): 56~86
Bandwidth (Max.): Full
Insertion Loss(dB): 1.5
Isolation(dB): 16
vswr: 1.4
Forward Power(W): 60
Reverse Power(W): 30
Connector Type : N, SMA
Temp.(°C): +10~+60
Dimension LxWxH(mm): 64×66×22
Drop in type from 56MHz to 26.5GHz(such as 56~86MHz, 68~88MHz, ... 600~800MHz, 700~900MHz, ... 1225~1875MHz, 0.8~2.0GHz, 1.0~2.0GHz, ... 1.7~3.5GHz, 2.0~4.0GHz, ... 12.0~18.0GHz, 18.0~26.5GHz)
Model No.: UIYBDI1024A
Freq.Range(GHz): 18~26.5
BW(Max.): Full
IL.(dB): 1.5
Isolation(dB): 17
vswr: 1.5
Forward Power(W): 10
Reverse Power(W): 2
Connector Type : TAB
Temp.(°C): -30~+70
Dimension LxWxH(mm): 10×24×9.3
