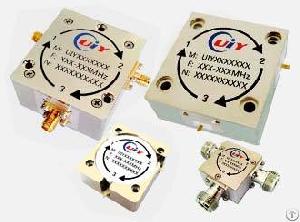

Rf / Microwave Broadband Circulator 56mhz To 18ghz Up To 2000w Power N / Sma / Tab Connec
Posted at: Offers to Sell and Export | Posted on: Tuesday 20 May 2014 2:35 am | Poster last visit: Tuesday 1 August 2017 |
Product Category: Main
» Electronic Components and Supplies
» Printed circuits and integrated circuits and microassemblies
» Circuit assemblies and radio frequency RF components
» Circulators
» Rf / Microwave Broadband Circulator 56mhz To 18ghz Up To 2000w Power N / Sma / Tab Connec
Product Description:
Features :
•Frequency Range 56MHz to 18GHz, up to 2000W Power.
•Military, Space and Commercial Applications.
•Low
insertion Loss, High Isolation, High power handling.
•Custom Design Available Upon Request.
Specification :
Coaxial type from 56MHz to 26.5GHz(such as 56~86MHz, 68~88MHz, ... 600~800MHz, 700~900MHz, ... 1225~1875MHz, 0.8~2.0GHz, 1.0~2.0GHz, ... 1.8~2.4GHz, 2.0~4.0GHz, ... 12.0~18.0GHz)
Model No.： UIYBCC6466B
Freq.Range(MHz)： 56~86
BW （Max.）： Full
IL.(dB)： 1.5
Isolation(dB)： 16
vswr： 1.4
Forward Power(W)： 60
Reverse Power(W)： 60
Connector Type ： N, SMA
Temp.(°C)： +10~+60
Dimension LxWxH(mm)： 64×66×22
Drop in type from 56MHz to 18GHz(such as 56~86MHz, 68~88MHz, ... 600~800MHz, 700~900MHz, ... 1225~1875MHz, 0.8~2.0GHz, 1.0~2.0GHz, ... 1.7~3.5GHz, 2.0~4.0GHz, ... 12.0~18.0GHz)
Model No.： UIYBDI1024A
Freq.Range(GHz)： 12.0~18.0
BW（Max.）： Full
IL.(dB)： 0.6
Isolation(dB)： 18
vswr： 1.35
Forward Power(W)： 30
Reverse Power(W)： 30
Connector Type ： TAB
Temp.(°C)： -30~+70
Dimension LxWxH(mm)： 12×15×8.6
Company Contact:
Contact Name: Yunmei Ye
Company Name: Uiy Technology Co., Ltd
Email:
Tel: +86-755-25999909
Fax: +86-755-25999959
Street Address: B29H, Binfenshiji, Longxiang
Blvd,Longgang District, Shenzhen 518172,
China
Website: https://www.uiy.com
Member name: GlobalRadioFrequency
Country:
China
Member Since: 04 December 2012
Total Leads: 21 GlobalRadioFrequency Import Export Business Leads
Business focus: Rf Isolator, Rf Circulator, Attenuate, Filter, Hybridge Combiner, Termination
Chat:
Verify: Safe Import Export Tips
•Frequency Range 56MHz to 18GHz, up to 2000W Power.
•Military, Space and Commercial Applications.
•Low
insertion Loss, High Isolation, High power handling.
•Custom Design Available Upon Request.
Specification :
Coaxial type from 56MHz to 26.5GHz(such as 56~86MHz, 68~88MHz, ... 600~800MHz, 700~900MHz, ... 1225~1875MHz, 0.8~2.0GHz, 1.0~2.0GHz, ... 1.8~2.4GHz, 2.0~4.0GHz, ... 12.0~18.0GHz)
Model No.： UIYBCC6466B
Freq.Range(MHz)： 56~86
BW （Max.）： Full
IL.(dB)： 1.5
Isolation(dB)： 16
vswr： 1.4
Forward Power(W)： 60
Reverse Power(W)： 60
Connector Type ： N, SMA
Temp.(°C)： +10~+60
Dimension LxWxH(mm)： 64×66×22
Drop in type from 56MHz to 18GHz(such as 56~86MHz, 68~88MHz, ... 600~800MHz, 700~900MHz, ... 1225~1875MHz, 0.8~2.0GHz, 1.0~2.0GHz, ... 1.7~3.5GHz, 2.0~4.0GHz, ... 12.0~18.0GHz)
Model No.： UIYBDI1024A
Freq.Range(GHz)： 12.0~18.0
BW（Max.）： Full
IL.(dB)： 0.6
Isolation(dB)： 18
vswr： 1.35
Forward Power(W)： 30
Reverse Power(W)： 30
Connector Type ： TAB
Temp.(°C)： -30~+70
Dimension LxWxH(mm)： 12×15×8.6
