Rf / Microwave Coaxia Isolator N / Sma Connector 20mhz-26.5ghz

Posted at: Offers to Sell and Export | Posted on: Tuesday 20 May 2014 1:35 am | Poster last visit: Tuesday 1 August 2017 |

Product Category: Main » Electronic Components and Supplies » Printed circuits and integrated circuits and microassemblies » Circuit assemblies and radio frequency RF components » Isolators » Rf / Microwave Coaxia Isolator N / Sma Connector 20mhz-26.5ghz

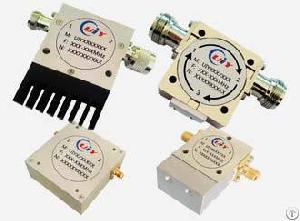

Product Photo:

rf microwave coaxia isolator n sma connector 20mhz 26 5ghz

Similar Products Catalog:
Products Photos Catalog Microwave Coaxia Photos Catalog

Product Description:

Features:

•Can be dual junction even three for high isolation.


•Military, space and commercial applications.

•Custom

design available upon request.

•Guaranteed for one year standard.

Specification:

Low Frequency from 20MHz to 1875MHz(such as 20~50MHz, 49~86MHz, 60~200MHz, 130~180MHz, 180~300MHz, 225~400MHz, 250~1000MHz, 300~1000MHz, 300~1875MHz) for FM, VHF, UHF, etc

Model No.: UIYCI8080A

Freq.Range(MHz): 20~50

BW(Max.): 10%

Insertion Loss(dB): 1.5

Isolation: 17 dB

vswr: 1.35

Forward Power(W): 50

Reverse Power(W): 50

Connector Type : N, SMA

Temp.(°C): +10~+60

Dimension LxWxH(mm): 80×80×28

Hign Frequency from 700MHz to 26.5GHz(such as 0.7~3.1GHz, 0.7~2.7GHz, 0.8~3.5GHz, 3.0~4.0GHz, 4.0~7.2GHz, 7.0~20.0GHz, 18~26.5GHz) for GSM, CDMA, WCDMA, LTE, L.S.C.X band, etc

Model No.: UIYBCI1024A

Freq.Range(GHz): 18~26.5

BW(Max.): Full

IL.(dB): 1.5

Isolation(dB): 17

vswr: 1.5

Forward Power(W): 10

Reverse Power(W): 2

Connector Type : SMA

Temp.(°C): -30~+70

Dimension LxWxH(mm): 10×24×9.3



Company Contact:

GlobalRadioFrequency photo
Contact Name: Yunmei Ye
Company Name: Uiy Technology Co., Ltd
Email: Email
Tel: +86-755-25999909
Fax: +86-755-25999959
Street Address: B29H, Binfenshiji, Longxiang
Blvd,Longgang District, Shenzhen 518172,
China
Website: https://www.uiy.com
Member name: GlobalRadioFrequency
Country: China-CN China
Member Since: 04 December 2012
Total Leads: 21 GlobalRadioFrequency Import Export Business Leads
Business focus: Rf Isolator, Rf Circulator, Attenuate, Filter, Hybridge Combiner, Termination
