Product Description:

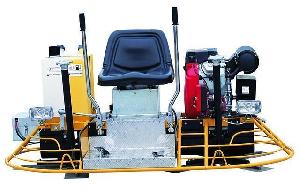

Ride-on Power trowel can be used in surface finishing of concrete road, terrace, boatyard, airport and
floor etc.
Function Brief:
1) Ride-on operation reduces intensity of labor and increases efficiency of work.
2)With dual rotor, more heavier weight and much more better compaction, the efficiency is higher than walk-behind power trowel.
3) A non-overlapping is designed for two pans working.
Main Techincal Parameters:
Weight 288 kg
Overall size H 1000 mm x W 1050 mm x L 2100 mm
Working surface 1940 mm
Ring diameter 2 x 900 mm
Engine 24 HP Honda Motor
Unleaded Fuel, Electric Start
Control system Manual lever-driven
Accessories Water tank, floodlight, battery
Blades 8 separate blades
Options: Transporter, Water Sprayer, Combination Blades, Pan
Low-Rider Power Trowels take productivity and flatness to a new level by lowering the combined machine/operator centre of gravity.
A lower centre of gravity translates into less machine wobble as the operator manipulates steering levers and rotor orientation to effect changes in the direction of travel over the slab.
Moreover, the weight to coverage area is lower than in competitive machines, allowing Low-Rider Power Trowels to get on the slab faster than other makes.
Low-Rider Power Trowels feature a unique tubular main frame that surrounds the steering linkage, gearboxes and other components and keeps concrete away from sensitive areas.
Synchronised steering allows for precision control of the machines.
24HP Honda engine provides ample torque for demanding pan / float and plenty of top end for high-speed finishing.
The trowel comes with lights, spray kit and adjustable seat as standard equipment.
