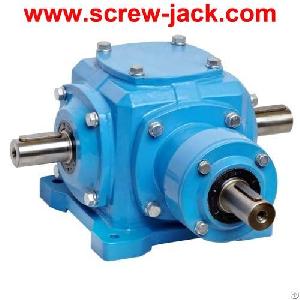

Right Angle Bevel Gear Drives, Right Angle Bevel Gear Reducer, Spiral Bevels Gearbox Street Sweeper
Posted at: Offers to Sell and Export | Posted on: Tuesday 30 July 2013 3:40 am | Poster last visit: Tuesday 25 December 2018 |
Product Category: Main
» Manufacturing Components and Supplies
» Bearings and bushings and wheels and gears
» Gears
» Bevel gears
» Right Angle Bevel Gear Drives, Right Angle Bevel Gear Reducer, Spiral Bevels Gearbox Street Sweeper
Product Description:
right angle bevel gear drives, right angle bevel gear reducer, spiral bevel gearbox street sweeper features:
1.
Spiral bevel gears drive, right angle assembly.
2. Used to transmit rotary motion, mechanical power and torque.
3. High efficiency bevel gearbox up to 98%.
4. Gear reduction ratio 1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1, 5:1, Customized special gear ratios.
5. Input power maximum 335 Kw, high torque maximum 5713 N.m, input speed and output speed maximum 1500 Rpm, high speed gearbox needs, contact Jacton engineers.
6. Drive input shaft and output shaft diameter 15 mm, 19 mm, 25 mm, 32 mm, 40 mm, 45 mm, 50 mm, 60 mm, 72 mm, 85 mm, Customized other shafts diameter.
7. 42 types drive shaft arrangements and rotating directions, drive shafts can be rotated in both forward and reverse direction with clockwise and counterclockwise rotation directions.
8. Soild shaft, hollow shaft and motor flange adapter are available, customized multiple spline keys.
9. horizontal mounting, overhung mounting or wall mounting are available. Special installation, contact Jacton.
10. (2-way) 2 shaft gearbox, (3-way) 3 shaft gearbox, (4-way) 4 shaft gearbox are available.
11. Low backlash arc minutes, quiet low noise less than 80dB under 1500rpm at 1 meter distance, low working temperature less than 50 degree centigrade.
right angle bevel gear drives, right angle bevel gear reducer, spiral bevel gearbox street sweeper Application in printing press, plastic extruder, sewage auger, bonding equipment, metering auger, sewage agitator, newspaper conveyor, bottling equipment, material handling, web finishing, paper conveying, conveyor, cardboard box equipment, packaging, satellite dish antennas, gate valve actuators, food processing, robotics, rubber processing, wrapping machine, solar panel, commercial mower, street sweeper, dual steering, bulkhead door opener, scissor lift, vertical pump drive, sand spreader, residential mower, car wash curtain, snow blower, mining equipment, crane, agricultural, grain wagon, harvester, forage harvester, manure spreader, fertilizer spreader, business form press, feed screw drive, sewage conveyor, collating machinery, mixing equipment, conveyor drive, screw jack system, film processor and pottle packaging equipment. Whatever your goal is to blend, blow, bottle, crank, cut, convey or the task is to press, propel or raise, Jacton gearbox is welcomed and ideal power transmission solution with all these industries.
Company Contact:
Contact Name: Warren Lee
Company Name: Jacton Electromechanical Ltd
Email:
Tel: +86 769 81585852
Fax: +86 769 81620195
Street Address: No.1, Langwei Road,
Changan, Dongguan, Guangdong,
China
Member name: screwjack
Country:
China
Member Since: 17 May 2010
Total Leads: 916 screwjack Import Export Business Leads
Business focus: Screw Jack, Bevel Gearbox, Screw Jack Lift System
Chat:
Verify: Safe Import Export Tips
