Product Description:

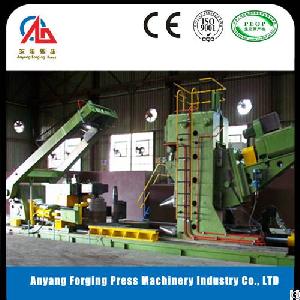

Introduction of D53K series CNC Ring Rolling Machine
D53K series Radial and Axial Ring Rolling Machine
is adopted CNC technology to roll the ring by radial and axial together. Only enter the dimensions of ring, semi finished ring, roller and material specification, then it can be rolled automatically. The size of ring and status of machine will be displayed on CRT.
Advantages of ring rolling machine:
1. Ring Rolling Machine can be used in making rings of different materials, because it is with feature of once rolling, the material using rate will be high and also high-production.
2. Ring Rolling Machine Production line is widely applied in forging bearing ring, barrel type part, flange, high neck flange, pipe flange, heavy ring, tire mold, thin wall ring, valve pipe, special ring etc.
3. Ring Rolling Machine is one of our main products, it has many advantages, for example, high production rate, easy operating, energy saving etc, and ring rolling machine is easy to maintenance
Parameter of ring rolling machine:
Machine type: D53K-2500
Radial rolling force (KN): 2000
Axial rolling force (KN): 1250
Taper roller angle (°): 35
Rolling line speed (m/s): 1.3/0.4~1.4
Radial motor power (KW): 2*250
Axial motor power (KW): 2*220
Roller ring OD (mm): 600-2500
Taper roller distance (mm): 80-550
Max rolled ring height (mm): 500
Max blank thichness (mm): 300
Max finished ring thickness (mm): 150
Machine length (mm): 14500
Machine width (mm): 3500
Height above ground (mm): 5000
