Product Description:

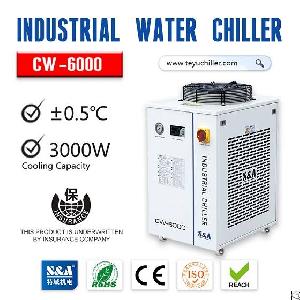

Air cooled chiller CW-6000 is designed, developed and produced by Guangzhou Teyu Electromechanical Co.,
Ltd(also known as S&A), a professional Chinese manufacturer of industrial water chillers with 16 year experience.
The production plant of S&A covers an area of 18, 000 square meters, enabling the annual production capacity of 60, 000 units of water chillers.
With cooling capacity up to 3000W and ±0.5℃ stability, S&A water chiller CW-6000 can cool the equipment very efficiently and effectively.
With the water tank capacity of 15L, S&A recirculating water chiller CW-6000 is widely applied in cooling high-power laser or high-power spindles.
S&A water chiller CW-6000 has good compatibility with powers of different countries due to its multiple power specifications. It uses T-506 as digital temperature controller which has various setting and display functions.
It has 2 temperature control modes as constant temperature control mode and intelligent control mode which can meet different needs of different users. Under intelligent control mode, the water temperature of CW-6000 water chiller will be self adjusted according to the ambient temperature, really setting users’ hands free.
S&A air cooled chiller CW-6000 has multiple alarm functions which can provide great protection to the equipment, including compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm.
S&A chillers have passed ISO, CE, RoHS and REACH approvals and the warranty is 2 years.
Water chiller parameter:
Voltage:110V-220V; Frequency: 50/60Hz; Refrigerant: R-22 / R-410a
Pump power: 0.05KW/0.1KW/0.37~0.75KW; Tank capacity:15L
Max. lift:10M/25M/28~53M; Max. flow: 13L/min- 70L/min
N.W: 60Kgs; G.W: 70Kgs;
Dimension : 67 X 47 X 89 cm (L X W X H); Packing dimension: 74 X 60 X 109 cm(L X W X H)
About S&A Brand
S&A(TEYU) was founded in 2002. After 16 years of developing and producing industrial water chillers, the headquarter covers an area of 18, 000 square meters, and has about 250 employees.
Why choose S&A
Product Advantages:
1. With 11 patent certificates,CE, RoHS and REACH approval; Conforms to air transport requirements; 2 years warranty
2.±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;
3. Establish logistic warehouses at USA and Europe;
Manufacturing Advantages:
1.Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;
2. Annual output 60, 000 units, product exports rate above 60%;
3. Standard bulk production, standard parts rate up to 80% ;
4. With excellent laboratory testing system, simulates actual working environment for chiller.
