Sapphire Dome
Posted at: Offers to Sell and Export | Posted on: Monday 27 October 2014 12:26 pm | Poster last visit: Thursday 18 January 2018 |
Product Category: Main
» Manufacturing Components and Supplies
» Industrial optics
» Optical domes
» Molded glass domes

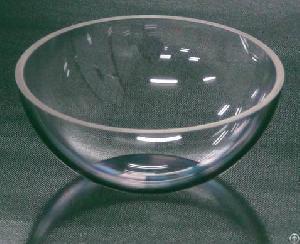

» Sapphire Dome
Product Description:
Sapphire has the characteristic of high hardness, high strength, high transmittance, and high resistance
to thermal shock quality factor. With excellent performance on thermal shock resistance and abrasion resistance, it can be widely applied to high speed working photoelectric equipment and intelligent high speed dome camera in airborne, shipboard, space-borne, submarine-based, land-based field.
Specifications
Crystal orientation: C, A, M optional
Diameter: Dia20 – Dia300 mm
Radius of curvature: R10 - R150
Wall thickness: > 1mm
Edge thickness difference: <= 0.02mm
Total thickness variation: <= 0.05mm
C axis deviation: <= 2º
Centration: <= 2 arc minutes
Surface Quality： Better than 60-40
Power N: <= 5 fringes
Irregularity △N: <= 1 fringe
Company Contact:
Contact Name: Gordon Zhang
Company Name: West Coast Tech Limited I
Email:
Tel: 8659187303536
Fax:
Street Address: No. 133, Tianquan
Rd, Fuzhou, Fujian, China
Fuzhou, Fujian 350001
China
Website: https://www.westcoast-tech.cn
Member name: westcoasthk
Country:
China
Member Since: 27 October 2014
Total Leads: 28 westcoasthk Import Export Business Leads
Business focus: Optical Component, Prisms, Lenses, Mirror, Window, Filter, Ir Optical
