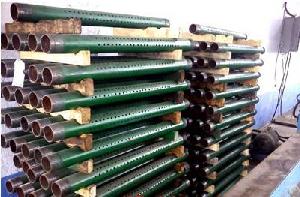

Screen Pipe
Posted at: Offers to Sell and Export | Posted on: Monday 23 September 2013 8:46 am | Poster last visit: Monday 23 September 2013 |
Product Description:
Features:
Precise Punched slotted Screen jacket
precise punched slotted Screen jacket can adopt line
seam welding along axial direction of tube or helical welding mode to enhance strength of filtering sleeve greatly. Aperture can be decreased or closed by compressing parts with external force during local extrusion to guarantee reliability of sand control. It shall adopt precise punching technique. Side punching opening of stainless steel precise punched slotted Screen jacket can reduce direct erosion effect of sand bed to screen. Machining range of punching aperture is from 0.20mm to 1.00mm. Machining error scope can be controlled within 0.015mm which can guarantee requirements of filtering precision. It adopts high-density punching technique. Effective opening slot length is three to five times of length of ordinary slotted tube and two to three times of length of ordinary caulking screen.
Peculiar helical layout of central tube
Central tube of high-density precise punched slotted screen adopts standard oil tube and casing. Central tube adopts helical perforation form to reduce aperture area of cross section of tube and retain strength of central tube as much as possible on basis of guarantee of integral area of passage of tube. Sand shall be blocked out of punching screen and oil, gas or water in stratum can pass punching aperture and perforation on central tube to enter into screen to realize the purpose of sand control.
Excellent anti-corrosive performance
Central tube adopts API standard casing or oil tube. precise punched slotted screen jacket adopts stainless steel 304. Central tube can adopt anti-corrosive casing or oil tube according to special requirements of high concentration Cl- well containing H2S, CO2. Screen shall be resistant to acid. alkaline and salt corrosion.
Application
Screen pipe can be used for casing completion and liner completion of vertical wells, inclined wells and horizontal wells etc. And it can be used for various oil wells, gas wells and water wells. It can be used as sand control colonnade individually and it can be used in gravel packing.
Company Contact:
Contact Name: Jason
Company Name: Puyang Zhongshi Group Co., Ltd
Email:
Tel: 86-0393-4805579
Fax: 86-0393-4805739
Street Address: The 5th District,
Zhongyuan Oilfield
Puyang, Henan 457331
China
Website: http://www.chinajixie.com
Member name: Jasonxiao
Country:
China
Member Since: 23 September 2013
Total Leads: 35 Jasonxiao Import Export Business Leads
Business focus: Pumping Unit, Tubing Pump, Tubing Pipe, Production Packer, Drill Pipe, Cementing Head, Casing Centralizer, Float Shoe, Float Collar
Chat:
Verify: Safe Import Export Tips
Precise Punched slotted Screen jacket
precise punched slotted Screen jacket can adopt line
seam welding along axial direction of tube or helical welding mode to enhance strength of filtering sleeve greatly. Aperture can be decreased or closed by compressing parts with external force during local extrusion to guarantee reliability of sand control. It shall adopt precise punching technique. Side punching opening of stainless steel precise punched slotted Screen jacket can reduce direct erosion effect of sand bed to screen. Machining range of punching aperture is from 0.20mm to 1.00mm. Machining error scope can be controlled within 0.015mm which can guarantee requirements of filtering precision. It adopts high-density punching technique. Effective opening slot length is three to five times of length of ordinary slotted tube and two to three times of length of ordinary caulking screen.
Peculiar helical layout of central tube
Central tube of high-density precise punched slotted screen adopts standard oil tube and casing. Central tube adopts helical perforation form to reduce aperture area of cross section of tube and retain strength of central tube as much as possible on basis of guarantee of integral area of passage of tube. Sand shall be blocked out of punching screen and oil, gas or water in stratum can pass punching aperture and perforation on central tube to enter into screen to realize the purpose of sand control.
Excellent anti-corrosive performance
Central tube adopts API standard casing or oil tube. precise punched slotted screen jacket adopts stainless steel 304. Central tube can adopt anti-corrosive casing or oil tube according to special requirements of high concentration Cl- well containing H2S, CO2. Screen shall be resistant to acid. alkaline and salt corrosion.
Application
Screen pipe can be used for casing completion and liner completion of vertical wells, inclined wells and horizontal wells etc. And it can be used for various oil wells, gas wells and water wells. It can be used as sand control colonnade individually and it can be used in gravel packing.
