Screw Pump Used In Well Drilling Fluid System For Sale At Aipu
Posted at: Offers to Sell and Export | Posted on: Thursday 10 August 2017 8:44 am | Poster last visit: Thursday 4 January 2018 |
Product Category: Main
» Distribution and Conditioning Systems and Equipment and Components
» Industrial pumps and compressors
» Pumps
» Screw Pumps
» Screw Pump Used In Well Drilling Fluid System For Sale At Aipu
Product Description:

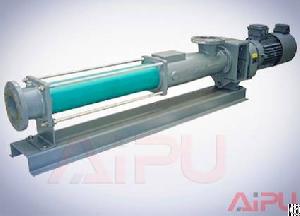

Screw pump used in well drilling mud process centrifuge is usually horizontal type. It transfers drilling
fluid from tank to centrifuge decanter. In solids control system, screw pump will pump fluid from desilter tank to centrifuge.
Further to decanter centrifuge flow rate, the screw pump model and motor will vary accordingly. If the centrifuge is VFD type, the screw pump will be configured as variable frequency driven.
Screw pump Technical Parameters
Model Speed(rpm) Capacity(m3/h) Pressure(Mpa) Head(m) Motor(KW) Outlet Flange (mm) Permitted Solids Dia.(mm) Fiber Length (mm)
Apg35-2 960 8 1.2 120 4 50 3 40
Apg40-1 12 0.6 60 4 65 3.8 45
Apg40-2 12 1.2 120 5.5 65 3.8 45
Apg50-1 20 0.6 60 5.5 80 5 50
Apg50-2 20 1.2 120 7.5 80 5 50
Apg60-1 30 0.6 60 11 100 6 60
Apg60-2 30 1.2 120 15 100 6 60
Apg70-1 720 45 0.6 60 11 125 8 70
Apg70-2 45 1.2 120 15 125 8 70
Apg85-1 65 0.6 60 15 150 10 80
Apg85-2 65 1.2 120 18.5 150 10 80
Apg105-1 145 0.6 60 22 200 15 110
Apg105-2 145 1.2 120 30 200 15 110
Apg135-1 350 0.6 60 37 250 20 150
Apg135-2 350 1.2 120 45 250 20 150
Centrifuge feed pump is a positive-displacement pump that use one or several screws to move fluids or solids material along the screw axle. There are single screw pump, double screw pump, the triple screw pump, as well as the quintuple screw pump. For drilling mud process, we use the screw pump to transfer drilling fluid to Decanter Centrifuge from desilter tank or centrifuge tank
Features of AIPU screw pump
1. The stable velocity.
2. Smaller pulsation on pressure.
3. Self-suction feature.
4. Low noise.
5. High efficiency.
6. Long operational life with reliable performance.
7. High quality S.S304~316L and carbon steel material optional.
Company Contact:
Contact Name: Jessie
Company Name: Aipu Solids Control
Email:
Tel: +86-18691483929
Fax: +86-2963611978
Street Address: 4th Jingyuan Road,
Jinghe Industry Zone
Xi'an, Shaanxi 710200
China
Website: https://www.aipusolidcontrol.com
Member name: aipusolidcontrol
Country:
China
Member Since: 11 July 2017
Total Leads: 172 aipusolidcontrol Import Export Business Leads
Business focus: Solids Control Equipment, Shale Shaker, Mud Cleaner, Centrifuge
Chat:
Verify: Safe Import Export Tips
