Product Description:
Model: SE5
Type: worm gear worm shaft slewing drive
Slewing drive gear ratio: 62
Rated output torque:
600N.M
Rotation center diameter: 146mm
Total height with adapter flange: 110mm
Gear backlash: ≤0.25mm

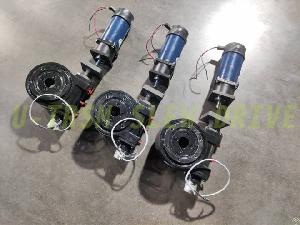

SE5 slewing drive with encoder and matching gear motor is used in light automation equipment, with low speed, frequent start and stop, need to know the position of the slewing drive in real time.
According to the customer’s requirements, we recommend this SE5 slewing drive, small size, large gear ratio, compact structure, the non-input end of the slewing drive is equipped with an encoder to record the number of turns of the worm rotation, and further calculate the real-time position of the turntable, and compare it with the actual required turntable position information to correct the deviation.
The input end of the slewing drive is equipped with a reducer DC motor for the customer, which is connected through the adapter flange. The performance parameters of the motor and reducer have been calculated in the early selection.
In the early stage of design, you only need to tell us the requirements, and then selection and calculation, design adaptation, production and testing, etc. are what we are good at, you just ask for what you want and leave the rest to the U-TRSM.
