Product Description:

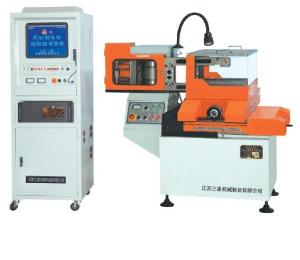

CNC Wire Cut EDM, we also say Wire EDM, Wire-cut EDM and CNC Engraving Machine are our key products..
The CNC Wire Cut EDM and CNC Engraving Machine are expoted to many countries.
1.CNC Wire Cut EDM is endowed with wire tightening system, "patent for its wire running system"
2. Parameter of multi-cutting (para of high frequency, wire running speed), once fixed, the machine can be intelligently controlled.
3. The processing accuracy of the wire cut edm: Plus and minus 0.005mm
4. The best surface roughness:of the Wire Cut EDM: Ra˜1.2um
5. The max cutting speed of the EDM Wire Cut: 160mm2/min
6. The average speed of triple wire edm cutting is about 80mm2/min(one time cut, another two time cuts for modification raising accuracy and reducing surface roughness of workpiece, surface roughness ˜1.5uM)
7. The system of the CNC Wire Cut EDM adopts the cartography programing software, auto CAD graphic in DXF format is compatible simultaneously.
8. The overall electricity contoller of the wire cut edm is a vertical contol box integrating in function of programming control, high frequency power electric parts, . The computer is the profesional computer for industrial use with 15'' liquid crystal screen enabled the machine to e easy for operation.
9. CNC Wire Cut EDM applies Non-touch point induction type direction switch. The wire running speed can be adjusted through frequency conversion.
10.CNC wire cut edm is suitable for processing mold and the components high in precision.
