Product Description:

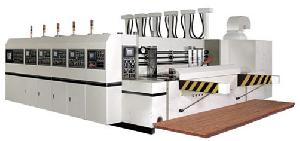

DAF Series Computerized Printing Slotter Die Cutting Machine
Feature of the main machine:
1.Color
touching screen Computerizd control and unlimited order store, rapid order changing,convenient operation and with humanity.
2.Adopting computerized control and electronic adjustments, adapting to utilizing habits of various clients and with convenient choice
3.Adopting strap foreside paper feed system, with stable high-speed operation and high accuracy
4.Having printing and slotting memory, auto zero adjustment and auto reset
5.Utilizing accurate ball bearing transmission in slotting and scoring interval , with stable operation and high precision.
6.Good quality alloy steel and rubbing process practiced in the main transmission gears prolong the utilizing span
7.Main electronic equipments are imported from abroad, with European quality standard
SPECIFICATIONS:
Model DAF1220 DAF1224 DAF1228
MAX. Machine Speed[PCS/min] 200 200 200
Economic Machine Speed[PCS/min] 80-160 80-160 80-160
Max. Printing[mm] 1200×2000 1200×2400 1200×2800
Max. Cardboard Size[mm] 1200×2050 1200×2450 1200×2850
Min. Cardboard Size[mm] 320×685 320×685 320×685
Skip Feed Paper Size[mm] 1200-1500×2050 1200-1500×2450 1200-1500×2850
Paper Feed Thickness[mm] 2-12 2-12 2-12
Paper Feed Precision[mm] ± 1 ± 1 ± 1
Printing Precision[mm] ± 0.5 ± 0.5 ± 0.5
Slotting Precision[mm] ± 1 ± 1 ± 1
Cutting Precision[mm] ± 1 ± 1 ± 1
Min. Slotting Interval[mm] 120 120 120
Max. Slotting Depth[mm] 320 320 320
Max. Paste Width[mm] 45 45 45
