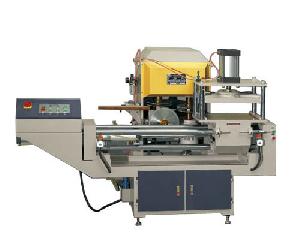

Product Description:
1 Adopted particular structure of triangular cylindrical sliding track
2 Move smoothly, stepless speed
adjusting available, no creeping, the blade retract quickly, save non-production time.
3 Operate easily, adjust size accurately, milling precision less than or equal to 0.1mm.
4 With 4 pieces of milling cutters to mill out right workpiece one time.
5 4 pieces of milling cutters are installed in axes of 3 main exectromotors, can adjust the height to fit for aluminum material.
6 The workbench is large enough to mill 10~12 pieces profiles one time, high efficiency.
7 Additionally can add one cutting blade as per the customer's request.
8 3 electromotors star up independently, could be selected as per workpieces' requirement.
9 38-90 series aluminum profile, heat insulation material and curtain wall profile could be milled.
10 Pneumatic spray mist blade lubrication coolant system.
main technique parameter
1.Working air pressure0.6~0.65Mpa
2.Air consumption200L/min
3.Power supply380V/50Hz
4.Input power3*2.2KW
5.Milling cutter rotation speed2840r/min
6.Milling cutter dimensionD250 * D50 * 6.5mm
7.Worktable dimension (L*W)500*320mm
8.Milling travel950mm
9.Overall dimension (L*W*H)2280*1040*1640mm
10.Weight1300KG
