Sell Liquid Silicone Rubber Lim Injection Molding Machine Tym-l2428a
Posted at: Offers to Sell and Export | Posted on: Saturday 23 May 2009 8:15 am | Poster last visit: Wednesday 27 October 2010 |
Product Category: Main
» Manufacturing Components and Supplies
» Moldings
» Injection moldings
» Rubber injection moldings
» Sell Liquid Silicone Rubber Lim Injection Molding Machine Tym-l2428a
Product Description:

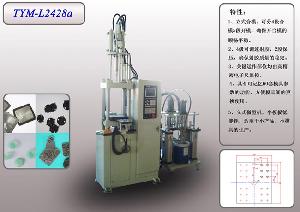

Sell Liquid Silicone Rubber (LIM) injection molding machine TYM-L2428A
1. TYM series computer control
system, multiple parameters adjustable.
2. Supersensitive displacement electronic ruler monitors the operation of every key action.
3. Direct pressure mould closing, it can be divided into 4 sections of mould closing and 5 sections of mould opening.
4. The raster monitors the mould closing interval.
5. It can remember 60 sets of moulds parameter.
6. It is applicable to the products manufacturing which has mold insert or needs to be picked off manually.
7. 30T small tongue vertical mould clamping, small mould board, it is applicable to small mould and small products.
Model
Item tym-l2428a
：Assuming the LSR density: 1.2g/cm3
Injecton unit
THE DIAMETER OF INJECTION PAIL mm 15, 30, 45
THE LENGTH OF INJECTION PAIL mm 150
SHOT VOLUME(THEORETCAL) ml 26.5 73.6, 106.0
IHJECTION WEIGHT(PS) g 30, 127.2, 285.6
IHJECTION RATE ml/s 6.5
IHJECTION PRESSURE Mpa 25
Clamping unit
Clamp force t 30
OPENING STROKE mm 400
EFFECTIVE TELEPLATE mm 240×280
MOULD THICKNESS （min～Max） mm 50～400
EJECTOR STROKE mm 100
ejection force t 15
Others
PUMP PRESSURE Mpa 14
PUMP MOTR POWER kw 5.5
HEATING POWER kw 10
Machine dimension(l×w×h) mm 2000×1200×2700 (including the dosing unit)
The specification of the dosing unit kg 200kg + 20kg
Machine weight t 1.5
Company: Tianyuan Silicone Rubber Machine Co., Ltd.
Yours faithfully
Mandy
Sales manager (export division)
Company Contact:
Contact Name: Mandy Ding
Company Name: Tianyuan Silicone Rubber Machine Factory
Email:
Tel: 86-020-84559850
Mobile: 86-13928798558
Fax: 86-020-84559855
Street Address: No. 4 On The Second
Zone, Liantang Industrial Zone,
Shiji Town, Panyu District,
Guangzhou City, P. R. China
Member name: Tianyuanlsr
Country:
China
Member Since: 19 May 2008
Total Leads: 23 Tianyuanlsr Import Export Business Leads
Business focus: Liquid Silicone Rubber, LSR Products, Injection Molding Machine
