Sell Road Barriers Installation Machine

Posted at: Offers to Sell and Export | Posted on: Saturday 5 May 2018 8:29 am | Poster last visit: Sunday 30 September 2018 |

Product Category: Main » Building and Construction Machinery and Accessories » Heavy construction machinery and equipment » Earth moving machinery » Pile drivers » Sell Road Barriers Installation Machine


Product Photo:

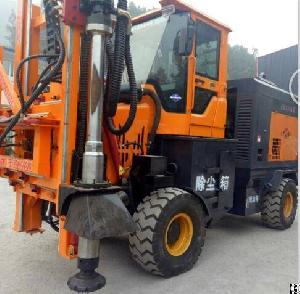

road barriers installation machine

Similar Products Catalog:
Products Photos Catalog Road Barriers Photos Catalog

Product Description:

Sell road barriers installation machine

Technical Parameters:


Engine model: Yucai 6108+ yunnei 4100

Engine

rated power: (140+59)kw

Rated speed: 2300r/m

Max output torque: 4500n/m

Hydraulic system flow: 120ml/r

Hydraulic rated pressure: 16Mpa

Drive system: 4wheel drive

Max turing radius: 6300mm

Screw tpe air pressure: 1.3Mpa

Screw type air consumption: 15 m3/min

Drill bit sliding extra route: 380mm

Hydraulic hammer sliding extra route : 500mm

Dedusting system: suction type

Air compressor method: screw type

Air compressor model: 15-13

Max working slope: 35 degree

Cab configuration: luxury

Tire spec: 20.5/70-16

brake configuration: Disc + automatically air-cut brake

Drilling diameter: 0-200mm

Drilling depth: 0-2100mm

Drilling capacity: 320holes/day

Hydraulic hammer weight: 220kgs

Hydraulic hammer impact frequency: 500-900Hz

Hydraulic hammer working flow: 60-100 l/min

Working pressure of hydraulic hammer: 13-16 Mpa

Max forward angular of frame: 12 degree

Max backwards angular of frame: 16 degree

Astern display: yes

Emission standard: China II

Total weight: 5700kgs

Dimension (L*W*H):5450*2340*2700mm

Warranty: 1 year
