Product Description:

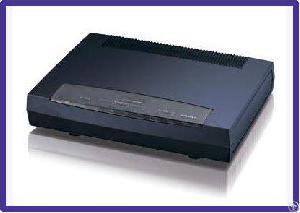

2.3M SHDSL Bridge/Router Modem, The BD-SHDSL-01 complies with the standard of SHDSL for worldwide deployment
and supports a symmetric data rate of up to 2.3 Mbps. With the SHDSL technology, the SHDSL allows office users to enjoy high-speed symmetric bandwidth and multimedia applications such as FTP sharing; video conferencing and real-time audio with much ease and speed than ever before.
The BD-SHDSL is ideally designed for small businesses to use as a substitute for local leased lines. As a substitute of a local leased line, the device offers a perfect solution of symmetric transmission for SOHO and SME users to enjoy high-speed SHDSL broadband services, as well as bandwidth-consuming applications such as video conferencing with more ease and speed than ever before. The Quality of Service feature ensures a smooth net connection for inbound and outbound data with minimal traffic congestion. The router also supports users to create a secure data communications environment between two or more sites. An abundance of integrated firewall security features such as URL Content Filtering provide users unparalleled protection from hackers.
Features & Specifications:
l Supports Symmetric Data Rate of up to 2.3 Mbps
l High-speed Back-to-Back Connectivity for Bandwidth-consuming Applications
l High-speed Internet Access with SHDSL
l Parental Control with URL Blocking and Packet Filtering
l DiffServ Quality of Service Control
l Available Syslog monitoring
l Integrated 1-port Ethernet Switch
l Ideal for Office Users
Benefits
High-speed Internet Access with 2 wire SHDSL
The BD-SHDSL-01 complies with the standard of SHDSL for worldwide deployment and supports a symmetric data rate of up to 2.3 Mbps. With the SHDSL technology, the BD-SHDSL allows office users to enjoy high-speed symmetric bandwidth and multimedia applications such as FTP sharing; video conferencing and real-time audio with much ease and speed than ever before.
High-speed Back-to-Back Connectivity
The BD-SHDSL-01 can be configured as RT/CO (client/server) mode for back-to-back applications. With the symmetric transmission auto-detect speed of up to 2.3 Mbps, the router can offer a cost-effective way for bandwidth-consuming applications, such as distance learning and video conferencing.
Smooth and Responsive Net Connection
The Quality of Service (QoS) feature helps users to manage the bandwidth and prioritize data transfer effectively. It gives one full control over the traffic of any type of data, ensuring latency-sensitivity and bandwidth-consuming applications such as video conferencing, customer information or FTP sharing, can move through the router at instantaneous speed, even when under heavy tasking. The speed for inbound and outbound data passed through the router can be controlled to ensure that users do not saturate the bandwidth with their browsing activities.
Routing
Support IP/TCP/UDP/ARP/ICMP/IGMP protocols
IP routing with static routing and RIPv1/RIPv2 (RFC1058/2453)
IP multicast and IGMP proxy (RFC1112/2236)
Network address translation (NAT/PAT) (RFC1631)
DNS relay and caching (RFC1034/1035)
DHCP server, client and relay (RFC2131/2132)
Bridging
IEEE 802.1D Transparent Bridging
Management
Easy-to-use web-based GUI/DIP4 for quick setup, configuration and management
Menu-driven interface/Command-line interface (CLI) for local console and Telnet access
Password protected management and access control list for administration
SNMP management with SNMPv1/SNMPv2c (RFC1157/1901/1905) agent and MIB II (RFC1213/1493)
Software upgrade via web-browser/TFTP server
Atm
Up to 8 PVCs
OAM F5 AIS/RDI and loopback
Aal5
ATM QoS
UBR (Unspecified Bit Rate)
CBR (Constant Bit Rate)
VBR-rt (Variable Bit Rate Real Time)
VBR-nrt (Variable Bit Rate Non-real Time)
AAL5 Encapsulation
VC multiplexing and SNAP/LLC
Ethernet over ATM (RFC 2684/1483)
PPP over ATM (RFC 2364)
Classical IP over ATM (RFC 1577)
Ppp
PPP over Ethernet for fixed and dynamic IP (RFC 2516)
PPP over ATM for fixed and dynamic IP (RFC 2364)
User authentication with PAP/CHAP/MS-CHAP
WAN Interface
SHDSL: ITU-T G.991.2 (Annex A, Annex B, Annex A&B)
Encoding scheme: 16-TCPAM
Data Rate: N x 64Kbps (N=0~36, 0 for adaptive)
Impedance: 135 ohms
LAN Interface
10 Base-T and 100 Base-T auto-negotiation
Hardware Specification
Physical Interface
WAN: SHDSL port
DIP switch: DIP4
LAN: 1-port 10/100M
Factory default reset button
Power jack
Indicators
General: PWR
Wan: link, act
Lan: 10/100m/act, cpe, alm
Physical Specification
Dimensions: 19.7 x 3.7 x 13.3m (W × H × D)
Power: 12VDC
Power consumption: 5 watts max
Temperature: 0~45°C
Humidity: 0%~95% RH (non-condensing)
Memory
2MB Flash Memory, 8MB SDRAM
