Sheet Metal Roll Forming Machine

Posted at: Offers to Sell and Export | Posted on: Monday 7 May 2012 11:27 am | Poster last visit: Monday 13 February 2017 |

Product Category: Main » Industrial Manufacturing and Processing Machinery and Accessories » Metal forming machinery and accessories » Metal rolling machines » Sheet metal forming machine » Sheet Metal Roll Forming Machine


Product Photo:

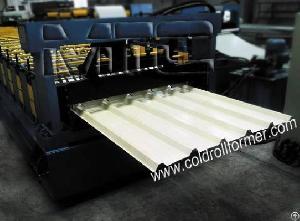

sheet metal roll forming machine

Similar Products Catalog:
Products Photos Catalog Sheet Metal Roll Photos Catalog

Product Description:

Sheet Metal Roll Forming Machine Brief

Sheet Metal Roll Former mainly consists of decoiler, feeding


equipment, forming unit, hydraulic cutting device, run out table, hydraulic station and PLC controller.

Optional: 10T hydraulic decoiler/ automatic stacker / safety cover/ precutter

Products Feature:

1. Save the weight of roof rapidly

2. Good heat resistance and water proof

3. Easy and quick installation, save workforce cost and time

4. The roof produced by this machine can be any color

It's widely used as the roof or wall cladding of factory, warehouse and exhibition hall, etc.

Working Flow

Decoiling— Feeding--Roll forming—Cuttin g--Run out table

Main Parameter of sheet metal roll forming machine:

Material Type

Galvanized/ prepainted steel

Thickness0.3 0—0.70mm

Machine Material Active shaft No. 45 steel tempered

RollerNo. 45 steel chrome plated

Cutting Blade Cr12 quenched

Power Requirement Type 415V/3PH/60HZ Customized

Main Motor About 4kw * 2 pcs

Hydraulic About 3.0kw

Speed Forming Speed 10-15m/min

Hydraulic Cantilever

Decoiler Type Manual

Max Capacity 5000kgs

Suitable OD 1220mm

Suitable ID 508mm

Max Width 1250mm

Motor Power 3.0kw

Hydraulic Power 2.2kw

Forming Stand About 20 groups Up to profile

Transmission Chain, sprocket Double-row entire chain

Type of Cutting length-set cutting Hydraulic cutter

Control System Mitsubishi PLC& transducer
