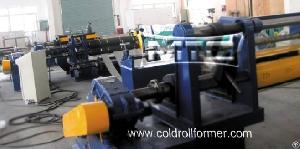

Simple Slitting Machine Line
Posted at: Offers to Sell and Export | Posted on: Friday 1 June 2012 12:28 pm | Poster last visit: Monday 13 February 2017 |
Product Category: Main
» Industrial Production and Manufacturing Services
» Manufacturing support services
» Converting services
» Slitting services
» Simple Slitting Machine Line
Product Description:
Components for the simple slitting machine line: This line includes Uncoiler, Feeding Guide, Slitting
Machine, Cantilevering Separating, Tension Control Board, Console and general electrical equipment.
Technical parameter of simple slitting machine line:
Material of processible coiled plate: Apply for carbon steel plate δ B≤ 700Mpa;
Thickness of coiled plate: δ =0.4_2mm;
Width of coiled plate: Slitting 1250mm;
Precision of slitting: Width tolerance: ± 0.02mm;
Slitting speed: 0_40m/min;
Loading capacity of uncoiler machine(feeding machine): 5T;
Coil I. D: 450-510mmmm;
Coil O. D: ≤ 1500mm;
Max Strips: 10 PCS.
Min. Strip Width: 70mm.
Knife pivot diameter of slitting: 120mm; Material 40Cr;
Slitting blade: 120× 220× 15; 10PCS
Material of slitting blade: 9CrSi;
Hardness of blade: HRC58_60 degrees;
Recoiler I. D: 508mm;
Power: 380V/3pH/50Hz;
The main components & damageable component in electronic equipments is accordance with GB stipulation;
Overall Dimmension: 12000mmx4500mm (LXW).
Total Power: 48KW
Specifics details for simple slitting machine line:
Uncoiler: Loading capacity of: 5T
This is composed of bottom stand, frame, conical discharging tray, manual pushing machine, etc.
Guiding (peer to peer) device
This is composed of worktable frame, guiding pole, adjustment device, moveable plane plate, etc.
Slitting machine
Power part: This is composed of power-stand, decelerator, motor: 11KW, gear distributing case, coupler, spindle, connecting-cover, etc.
Host machine: This is composed of bottom-stand, fixed torii,, knife pivot(φ 120mm, 2PCS), knife pivot lifting and pressing down adjustment device, accompany of blade, separating cover, rubber band.
Company Contact:
Contact Name: Tony Tang
Company Name: Shanghai MTC Industrial Co., Ltd
Email:
MSN:
Skype: tangleitony
Tel: 86-21-67228332
Cell: 0086-18001958638
Fax: 86-21-6722-8302
Street Address: No.56 Fortune Hao Road,
Fengjing Town, Jinshan District, Shanghai
China
Website: http://www.coldrollformer.com
Website: http://www.rollformingdesign.com
Website: https://mtc-china.com
Member name: MTCRollFormingMachine
Country:
China
Member Since: 26 March 2012
Total Leads: 244 MTCRollFormingMachine Import Export Business Leads
Business focus: Roll Forming Machine, Cold Roll Forming Machine, Cold Roll Former, Cold Forming Machine, Roll Forming Line, Insulated Sandwich Panel Production Line
Chat:
