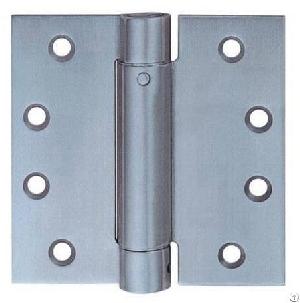

Single Acting Spring Hinges, Non-handed
Posted at: Offers to Sell and Export | Posted on: Saturday 9 March 2013 9:49 am | Poster last visit: Friday 19 August 2016 | Targeted Countries: USA | Canada | UAE
Product Category: Main
» Manufacturing Components and Supplies
» Hardware
» Miscellaneous fasteners
» Hinges
» Single Acting Spring Hinges, Non-handed
Product Description:
Single Acting Spring Hinges, non-handed
Material: Stainless Steel 304, or 201, iron steel is workable.
Dimension
available: Length*Width*Thickness (Gauge)
1. Model No.: SSS403030, (L * W* T, Size: 4.0'' X3.0''x3.0mm)
2. Model No.: SSS404030, (L * W* T, Size: 4.0'' X4.0''x3.0mm)
3. Model No.: SSS454030, (L * W* T, Size: 4.5'' X4.0''x3.0mm)
4. Model No.: SSS454530, (L * W* T, Size: 4.5'' X4.5''x3.0mm)
5. Model No.: SSS454034, (L * W* T, Size: 4.5'' X4.0''x3.4mm)
6. Model No.: SSS454534, (L * W* T, Size: 4.5'' X4.5''x3.4mm)
Finish: US32D, US32, US26D, US3, US4, US10B, US15, others available upon request.
Other specification: Square corners as standard; Optional is round corners - 1/4" (6 mm) radius; custom corner is workable upon request.
Accessories: stainless steel machine screws/wood screws, Allen keys (hex wrench)
Package: 1 piece per each poly bag, 2 pieces or 3 pieces per box, 30-50pieces pear carton.
Power adjustable: Spring tension is easily adjusted by hex wrench to adjust the set screw in different powder hole position via turning ratchet which connects flat strong spring inside.
Application of automatic closing doors: Metal doors or wood doors. Labeled fire doors, stairwell doors, motel and hotel guest room doors, lavatory doors
Maximum door weight (Recommendation):
Model No. SSS403030 - 90 lbs (40kg). Qty: 1piece Located in center, 2 ball bearings hinge additionally for each door.
Model No. SSS404030 - 110 lbs (50kg). Qty: 1piece Located in center, 2 ball bearings hinge additionally for each door; 2 pieces of this size are recommended.
Model No. SSS454030 & SS454530 -130 lbs (59kg). Qty: 2piece Located in center and bottom, or top and bottom, 1 ball bearings hinge additionally for each door.
Model No. SSS454034 & SS454534 - 180 lbs (81.6kg). Qty: 3piece Located in center and bottom and top.
Note: The hinge pivot point aligns with non-spring hinges of the same size.
Door thickness (minimum): 1-5/16'' (33mm) for model no.: SS403030; 1-5/8'' (40mm) for model no.: SS404030, SS454030, SS454034; 2'' (50mm) for model no.: SS454530, SS454534.
Quality audit: Factory test Meets NFPA80 standard for 3 hour fire doors. None Listed by UL.
•Caution: Use of gasket for smoke or sound protection, wind condition or unbalanced air pressure, twisted or misaligned frames or doors, door bottoms, improper latch adjustment may prevent doors from latching. Additional spring hinges may be required.
Company Contact:
Contact Name: Burton Leung
Company Name: Galaxy Hardware Industry Co., Ltd
Email:
Skype: burtonleung
Yahoo:
MSN:
Tel: +86 750 3306 445
Fax: +86 750 3309 445
Street Address: No.51, Sangyong Ave.,
Jiangmen City, Guangdong Province,
China 529000
Member name: Gehardware
Country:
China
Member Since: 23 September 2008
Total Leads: 36 Gehardware Import Export Business Leads
Business focus: Door Hardware, Construction Hardware, Hinges, Handles, Bolts, Latches, Viewers, Stops, Pulls, Clamps, Closers, Other Hardware Fittings
Chat:
Verify: Safe Import Export Tips
Material: Stainless Steel 304, or 201, iron steel is workable.
Dimension
available: Length*Width*Thickness (Gauge)
1. Model No.: SSS403030, (L * W* T, Size: 4.0'' X3.0''x3.0mm)
2. Model No.: SSS404030, (L * W* T, Size: 4.0'' X4.0''x3.0mm)
3. Model No.: SSS454030, (L * W* T, Size: 4.5'' X4.0''x3.0mm)
4. Model No.: SSS454530, (L * W* T, Size: 4.5'' X4.5''x3.0mm)
5. Model No.: SSS454034, (L * W* T, Size: 4.5'' X4.0''x3.4mm)
6. Model No.: SSS454534, (L * W* T, Size: 4.5'' X4.5''x3.4mm)
Finish: US32D, US32, US26D, US3, US4, US10B, US15, others available upon request.
Other specification: Square corners as standard; Optional is round corners - 1/4" (6 mm) radius; custom corner is workable upon request.
Accessories: stainless steel machine screws/wood screws, Allen keys (hex wrench)
Package: 1 piece per each poly bag, 2 pieces or 3 pieces per box, 30-50pieces pear carton.
Power adjustable: Spring tension is easily adjusted by hex wrench to adjust the set screw in different powder hole position via turning ratchet which connects flat strong spring inside.
Application of automatic closing doors: Metal doors or wood doors. Labeled fire doors, stairwell doors, motel and hotel guest room doors, lavatory doors
Maximum door weight (Recommendation):
Model No. SSS403030 - 90 lbs (40kg). Qty: 1piece Located in center, 2 ball bearings hinge additionally for each door.
Model No. SSS404030 - 110 lbs (50kg). Qty: 1piece Located in center, 2 ball bearings hinge additionally for each door; 2 pieces of this size are recommended.
Model No. SSS454030 & SS454530 -130 lbs (59kg). Qty: 2piece Located in center and bottom, or top and bottom, 1 ball bearings hinge additionally for each door.
Model No. SSS454034 & SS454534 - 180 lbs (81.6kg). Qty: 3piece Located in center and bottom and top.
Note: The hinge pivot point aligns with non-spring hinges of the same size.
Door thickness (minimum): 1-5/16'' (33mm) for model no.: SS403030; 1-5/8'' (40mm) for model no.: SS404030, SS454030, SS454034; 2'' (50mm) for model no.: SS454530, SS454534.
Quality audit: Factory test Meets NFPA80 standard for 3 hour fire doors. None Listed by UL.
•Caution: Use of gasket for smoke or sound protection, wind condition or unbalanced air pressure, twisted or misaligned frames or doors, door bottoms, improper latch adjustment may prevent doors from latching. Additional spring hinges may be required.
