Single Point Sensor Lac-a2

Posted at: Offers to Sell and Export | Posted on: Thursday 14 November 2013 8:19 am | Poster last visit: Thursday 20 March 2014 | Targeted Countries: India | Korea

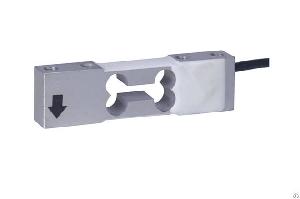

Product Photo:

point sensor lac a2

Similar Products Catalog:
Products Photos Catalog Point Sensor Lac Photos Catalog

Product Description:

Single point sensor(lac-a2)

1、Specifications


Rated Loading:1.5, 2, 3, 6kg

Dimension :22*12*80

Rated

Output:2.0mv/V±10%

Zero Balance:±0.05mv/V

Non-linear Error:±0.02%R.O.

Hysteresis, Repeatability Error:±0.015%R.O.

Creep in 2 Min. :±0.03%R.O./2Min

Temp. Effect on Output:±0.05%R.O./10℃

Temp. Effect on Zero :±2%R.O./10℃

Input Resistance:1130±20Ω

Output Resistance:1000±10Ω

Safe Overload :150%.R.C.

Insulation Resistance :≥2000MΩ

Compensation Temp.Range:-10to+40℃

Operating Temp.Range:-20to+60℃

Excitation, Recommened:≤6VDC

Excitation, Maximum:18VDC

Cable, Length:20cm(φ4mm)

2、Features

Material:Aluminum alloy

Application:Mainly used for electronic balances, counting scales etc.

Max.platform size:150*150mm
