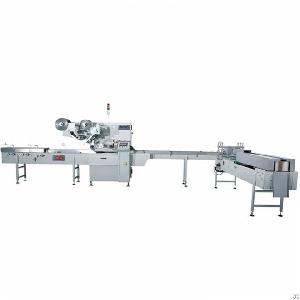

Single Roll Toilet Paper Packaging Machine
Posted at: Offers to Sell and Export | Posted on: Saturday 20 November 2021 9:43 am | Poster last visit: Saturday 20 November 2021 |
Product Category: Main
» Paper Materials and Products
» Industrial use papers
» Paperboard and packaging papers
» Packaging paper
» Single Roll Toilet Paper Packaging Machine
Product Description:
Single roll toilet paper packaging machine Toilet Paper Packaging Machine Single Rolls Packaging
Machine Manufacturer
Toilet Paper Packaging Machine Features
1. Automatic single toilet roil packing machine features adopt to kitchen towel and toilet paper with core and without core package .
2. Toile rolls feeding.put the packing film, vertical sealing, coreless rolis air exhaust, recersing all action control by servo motor, have completely all function, high efficiency, simple operation, sprcifications to adapt to a wide range.the quick changeover specifications, the advantages of convenient maintenance and low use cost.
3. Stable speed with core the maximum speed is 200rolls/min.
4. Stable speed without core the maximum speed is 150rolls/min.
5. It is adjustable the tissue length from 80mm-195mmomly set by electronic.
Toilet Paper Packaging Machine Technical parameters:
Scope of application: Single roll for both core and non-core style
In-feed pattern: ASF full automatic
Design speed: 35-240 rolls/min
Max stable operation speed(core roll): 180rolls/min
Max stable operation speed(non-core roll): 120rolls/min
Film installation structure: double film support
Roll diameter: 90mm-120mm
Core roll length: 90-150mm
Non-coreroll length: 90-170nn
Mould: 2 sets matched
Machine dimension: 6645mm*2839mm*1680mm(L*W*H)
Machine weight: about 1700kg
Film materials: double heat-seal film bopp, spp
Film thickness: 0.018-0.03mm
Max film reel diameter: 380mm
Core reel diameter: 70-76mm
Max film reel width: 430mm
Compressed air: Pressure>5mpa; Rate of flow>150 L/min
Supply Power: 220V/50HZ
Total power: 2.885kw
Total heat power: 5.1kw
Voltage variation: +/-10%
I/O input(VDC): 24VDC
I/O output(VDC): 24VDC
Machine color and prossing: Gray RAL7032; Electrostatic spraying & baking varniish
Machine run control pattern: Three axle servo and axle location control
Main movement pattern: synchronous belt, chain and gear
Roll sealing style: Full close or semi-close
