Slewing Bearing Rks22 0541 648x445x56mm With Internal Teeth For Casting Equipment

Posted at: Offers to Sell and Export | Posted on: Monday 8 January 2024 2:42 am | Poster last visit: Sunday 17 March 2024 |

Product Category: Main » Manufacturing Components and Supplies » Bearings and bushings and wheels and gears » Bearings » Ball bearings » Slewing Bearing Rks22 0541 648x445x56mm With Internal Teeth For Casting Equipment

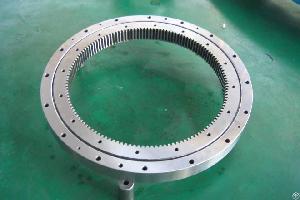

Product Photo:

slewing bearing rks22 0541 648x445x56mm internal teeth casting equipment

Similar Products Catalog:
Products Photos Catalog Slewing Bearing Rks22 Photos Catalog

Product Description:

Large bearings RKS.220541 strcuture:slewing bearing

Bearing factory items:RKS.220541


Bearing old type:RKS.220541

Bearing

boundary Dimension:648X445X56 MM

ID(inner diameter)/Bore:445 mm

OD(outer diameter):648 mm

Width/Height/thickness:56 mm

The bearing RKS.220541 precision grade:P5 P6 Grade

Quality standard:GB307 Rolling bearing technical requirement

Bearing boundary inch size:25.51x17.51x2.20

Bearing outer diameter inch:25.51

Bearing inner diameter inch size:17.51

Bearing height inch:2.20’’

Outer Ring material:42CrMo, 50Mn

Inner Ring material:42CrMo, 50Mn

Rolling LYC ball

Teeth parameter

d0=456mm

m=6

z=76

Basic load rating C :(KN) 188

Basic load rating Co:(KN)380

Lubrication:Oil or Grease oil hole and oil groove in the outer ring

Clearance:C3 C0 available

The seaport name:Shanghai or Tianjin or qingdao seaport

HS code:8482100090

Load Direction:Radial

Bearing Service:offer drawing and technical support

Transport Package :Wooden Box/Cardboard Box

Our Advantages

1, Experience: 20 years experience on bearing manufacturing and exporting.

2, Customer: Exporting to more than 126 countries on 6 continents

3, Quality standard: ONLY Above than P6
