Product Description:
Bearing factory model number:RKS.22 0841
China Bearing old type: RKS.220841

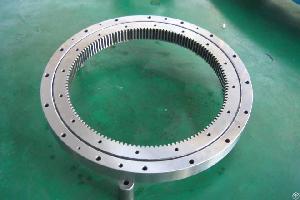

Bearing structure: Four
point contact ball slewing bearing
Precision grade:P5 P6 grade
Radial clearance:C1 C2 C3 Gruop available
The bearing application: Elevating Work Platform
Bearing boundary Dimension:948X736X56 MM
ID(inner diameter)/:736 MM
OD(outer diameter):948 MM
Width/Height/thickness:56 MM
Quality standard:GB307 Rolling bearing technical requirement
Weight:63 KHS
Outer Ring material:42CrMo, 50Mn
Inner Ring material:42CrMo, 50Mn
Rolling LYC ball
Teeth parameter
d0=752mm
m=8
z=94
The seaport name:Shanghai or Tianjin or qingdao seaport
Rolling Body:ball Bearings
Basic load rating C :(KN) 222
Basic load rating Co:(KN) 580
Heat Treatment:Bainite heat treatment
Clearance:C3 C0 available
Outer Ring and Inner Ring heat treatment:HRC55-62
Bearing boundary inch size:37.32x28.97x2.20
Bearing outer diameter inch:37.32 inch size
Bearing inner diameter inch size:28.97 inch size
Bearing height inch:2.20 inch size
The bearing working speed:1000rpm
HS code:8482100090
Production Capacity:1000 PCS/Year
