Product Description:

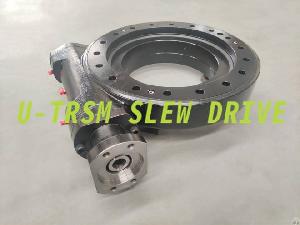

Model: SE14
Type: worm gear worm shaft slewing drive
Slewing drive gear ratio: 85
Rated output torque:
8KN.M
Rotation center diameter: 355mm
Total height with adapter flange: 120mm
Gear backlash ≤0.40mm
SE14 worm gear worm shaft slewing drives are used in automation equipment, worm gear worm shaft slewing drives have the characteristics of large gear ratio, large output torque and self-locking. They are particularly suitable for applications at low rotational speeds. If there are hydraulic stations on site, it is very suitable to use worm gear worm shaft slewing drives with hydraulic motors.
Hydraulic motors have the characteristics of low speed, large output torque, adjustable speed and torque, etc. They are used in conjunction with worm gear worm shaft slewing drives with large gear ratios. They are generally used directly without additional reducers.
Our standard worm gear worm shaft slewing drives are designed to fit hydraulic motors. If the sizes of the hydraulic motor interface you use do not match our standard, don’t worry, we will design adapter flanges to match your motors.In this way, no matter what kind of motor you use and what posture you want to install the motor in, the problem of adapting flange can be solved. U-TRSM specializes in designing slewing solutions, you only need to make requests, and leave the rest works to U-TRSM.
