Product Description:
Model: S-I-O-0229
Type: same direction and opposite direction inputs slewing drive
Slewing drive gear
ratio: 5.40
Rated output torque: 2700N.M
Rotation center diameter: 229mm
Total height with adapter flange: 120mm
Gear backlash ≤0.3mm

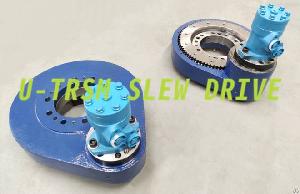

S-I-O-0229 same direction and opposite direction inputs slewing drives matching hydraulic motors used in mining equipment. There are a large amount of dust in the use sites of the slewing drives, and the environment is humid and requires slewing drives have higher protection levels.
According to the particularities of the customer’s equipment installations, Unique Transmission has designed the same direction input slewing drives for customer. That is, they are opposite to the input ends of the slewing drives of the usual reverse inputs.
Slewing drive rotating faces and motor input faces on the same side. Commonly used under rotating surfaces, where there are no spaces available to install reducers or motors. For example, under the rotating surfaces are the grounds or the rigid foundations of the equipment, and the same direction input slewing drives are used in such an installation environment.
According to the parameters of the customer’s hydraulic stations and the customer’s performance requirements for the slewing drives, we selected and matched the appropriate hydraulic motors for the customer.
The motors are installed in places before leaving the factory, and the slewing drives only need to connect the oil pipes to the customer’s site to work normally. If you choose Unique Transmission, it means you have chosen professional, convenient, fast and secure.
