Product Description:

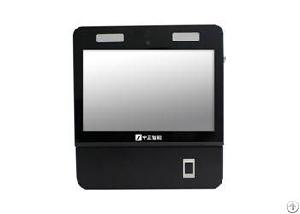

Smart Verification Desktop MR860 ISO 7816 contact card fingerprint reader
Biometric Smart Card Reader
Overview:
MR-860
is a two-way biometric authentication desktop, combining fingerprint and face recognition technology to verify a person from a digital face image or fingerprint.
The MR-860 is able to read an contactless ID card (ISO14443, Type A&B card) with biometric
data stored on it.It combines on-board and server-driven remote identification.A memory extension (micro SD slot) and wireless communication standards (2G, 3G, 4G/Bluetooth/WIFI) open the future of Smart Verification.
Features:
● 508dpi capacitive fingerprint scanner with large finger capture area
● 2M Camera for photo capturing
● 10.1inch IPS tft display with multi-touch capacitive touch panel
● contactless card reader (ISO14443, Type A&B card)
● 2G/3G/4G, WIFI, Bluetooth, TCP/IP, GPS (optional)
● On-device or remote authentication
● Android 4.4.4
● Multi-interface, USB host port, USB OTG interface, RJ45 interface, HDMI interface
desktop fingerprint card reader SPECIFICATION:
Specification MR-860
Power&Battery DC 12V Power adapter; built-in Li-on battery(optional)
Peak current <=1500mA/DC 12V
ESD IEC 61000-4-2 Level 2 ±8 kV Air discharge, ±4 kV Contact discharge
Hardware parameter CPU:2.0GHz 8-core; RAM:DDR 1GB; Flash:EMMC 8GB
OS Android 4.4.4
Communication WIFI 802.11 b/g/n; Bluetooth 4.0; 3G/4G (optional); TCP/IP
Watchdog Support watchdog SW
Display+Touch panel 10.1inch IPS TFT-display, 1280*800, 350nits luminance
Supports for external max.22inch display
G+G Capacitive TP, at least 2-point touch fingers
Contactless smart card reader Supports for ISO14443, Type A&B card
Fingerprint module(optional) Capacitive sensor, TCS1
Active platen area 12.8x18mm
Image resolution is 256x360 pixel, 508 DPI
Fingerprint template size is 512K byte
Camera 2MP camera (front facing)
Audio 1 loudspeaker, supports voice reminding
Power switch Power switch button
Face recognition algorithm performance 1:1 verification within 2secs
Recognition rate>99%
Fingerprint algorithm performance EER<0.1%
Far ≤0. 001 % frr ≤1 %
Device ports DC charging interface+USB host port+USB Device /OTG interface
+RJ45 interface + HDMI interface
Card slot 1 SD/TF card slot, 1 SIM card slot(optional)
Device Size&Weight 275mm*250mm*50mm(L× W× H), 1.83kg N.W.
Environment St. Temp.:-20~+60℃;
Op. Temp.:0~+50℃
The company is Chinese's industry-leading developer and manufacturer of biometric system and fingerprint recognition algorithm. Based on over 18 years of industry experience and we are the key vendor of fingerprint scanner for Chinese resident ID card program approved by the ministry of Public Security.
