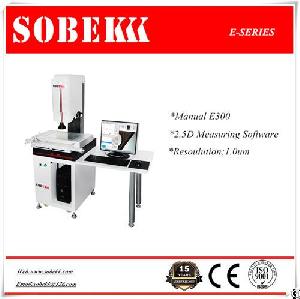

Sobek E-series Manual Video Measuring Machine
Posted at: Offers to Sell and Export | Posted on: Thursday 1 March 2018 3:31 am | Poster last visit: Thursday 1 March 2018 |
Product Category: Main
» Laboratory and Measuring and Observing and Testing Equipment
» Measuring and observing and testing instruments
» Indicating and recording instruments
» Coordinate measuring machines CMM
» Sobek E-series Manual Video Measuring Machine
Product Description:
*“HIWIN” P level linear guideway and precision cross roller guideway for increased accuracy & working
life
*Integrated granite base and column ensures machine stability.
*Supplied with SBK-E multifunctional 2.5D measuring software, automatic edge detection and vision height measurement function.
*Supplied with removable & dismountable console support table
*High-definition detent step zoom lens and high-resolution CCD performs high-definition measurement.
*Supports different file formats of data output such as Word, Excel, CAD etc. DXF import for quick inspection.
Model E200 E300 E400 E500
Measuring range(mm) 200*100*200 300*200*200 400*300*200 500*400*200
Machine size(mm) 750*1300*1500 750*1300*1500 900*1400*1500 1100*1125*1650
Weight&(kg)& 300 300 400 530
Max. Load(kg) 20 25 25 30
Accuracy of X-Y axis 3+L/200µm
Accuracy of Z axis 5+L/200µm
XYZ resolution 1.0um
Repeatability(mm) 0.003
Linear encoder glass linear scale
Camera type SBK-HC536 1/3 inches 600 lines industrial color camera
Liner guide Z axis: Taiwan “HIWIN” P grade linear guideway; XY use "V" type linear guideway
Optics 6:5:1 continual zoom step lens
Magnification optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X
Software SBK-E manual 2.5D measure software
Probe Renishaw MCP probe (EP model)
Z axis motor China “Tiger” synchronous AC servo motor (S model)
Control system SBK3000 control box, USB port, adjustable light
Profile illumination LED cold lighting, 256 level programmable brightness adjustment
Surface illumination LED cold lighting with segmented independent control & 256 level programmable brightness adjustment
Operated mode handle wheel
Option device Renishaw MCP probe, 0.5X, 2X extend lens
