Product Description:

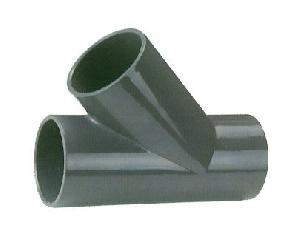

Socket Inclined Tee
Nominal
Diameter Depth of Socket Dimension of Socket Wall Thickness Center to Bottom
of Socket
Cmin 45°Lateral Tee
a h
DN NPS Jmin d1 3000LB 6000LB 9000LB 3000LB 6000LB 3000LB 6000LB
Sch80 Sch160 XXS Sch80 Sch160 Sch80 Sch160
6 1/8 10 10.7 3.2 3.5 - - - - -
8 1/4 10 14.1 3.3 4.0 - 32 - 8 -
10 3/8 10 17.5 3.5 4.4 - 37 - 8 -
15 1/2 10 21.8 4.1 5.2 8.2 41 51 11 13
20 3/4 13 27.4 4.3 6.1 8.6 51 60 13 14
25 1 13 34.2 5.0 7.0 10.0 60 71 14 18
32 1.1/4 13 42.9 5.3 7.0 10.6 71 81 18 21
40 1.1/2 13 48.3 5.6 7.8 11.2 81 98 21 25
50 2 13 61.1 6.1 9.5 12.2 98 120 25 29
65 2.1/2 16 76.9(73.8) 7.7 12.5 - - - - -
80 3 16 89.8 8.3 13.8 - - - - -
100 4 19 115.5 9.4 - - - - - -
