Product Description:

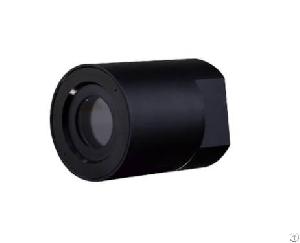

The solar blind UV image intensifier and the CCD are directly coupled through the optical fiber panel
and the light cone, which can realize the output of electrical signals for digital processing and recording.
Application Fields:
UV warning, missile tracking, corona detection, fingerprinting for criminal investigation and forest fire prevention.
Technical Features:
The CCD is directly coupled to the image intensifier optical fiber panel through a light cone.
Specifications:
Adapter image intensifier: 18mm Solar blind UV image intensifier
Effective pixels: 752×582
Output image format: PAL/NTSC
Frame frequency: 25/30 fps
Resolution: 12(min) lp/mm
Working temperature: -20~+50 ℃
Input power: 12 Vdc
Gain adjustment: 0~5 Vdc
Dark count: 10 CPS
