Product Description:

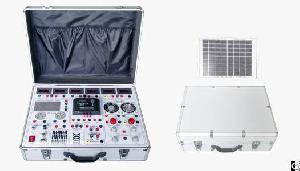

1. This trainer is composed of training model and experiment box.
2. The training model consists of
monocrystalline silicon solar panel and simulative light source. The position of solar panel and the light intensity of simulated light source are both adjustable.
3. The experiment box adopts intelligent digital display meters (with communication function), ARM series single chip data acquisition card and upper computer monitoring software to realize the real time monitoring of the charge-discharge data. Besides, it is equipped with dual system solar energy charging and discharging controller, 16×32LED Chinese character dot matrix, lead-acid battery module, single phase grid-off type inverter module, DC 12V inductive/resistive load, AC220V inductive/resistive load, universal resistance box load and (optional) external DC load.
4. All units are modular and open type designed, which is clear and convenient to operate.
5. The experiment box is made of thickened aluminum alloy frame and epoxy resin board, with high crushing resistance and good insulation characteristic.
> EXPERIMENTS
1. Solar panel characteristic training
2. Solar power controller training
3. Solar power grid-off inverter training
4. Comprehensive solar power application training
> TECHNICAL PARAMETERS
1. Power supply : AC 220V±10%, 50Hz
2. Power consumption: ≤ 500W
3. Safety protection: action current ≤30mA, action time ≤0.1S
4. Working environment: temperature -10ºC~+40ºC, relative humidity <85% (25ºC), height <4000m
5. Dimensions: 550mm × 400mm × 180mm (experiment box)
1200mm × 320mm × 250mm (training model)
6. Weight: 10kg (approximately)
