Sp-m-o-0411 Spur Gear Slew Drive

Posted at: Offers to Sell and Export | Posted on: Thursday 17 June 2021 12:42 pm | Poster last visit: Monday 23 September 2024 |

Product Category: Main » Manufacturing Components and Supplies » Bearings and bushings and wheels and gears » Gears » Spur gears » Sp-m-o-0411 Spur Gear Slew Drive

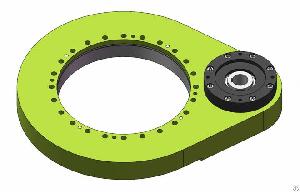

Product Photo:

Similar Products Catalog:

0411 Spur Gear Slew Photos Catalog

Product Description:

The slewing rings and housings of the spur gear slewing drive are all sealed with NBR rubber, has the

performance of dustproof, water resistant and IP65 protection grade.

The surface of the slewing drive housing, flange and other parts are treated with phosphating or spray treatment, which is beautiful and anti-corrosion.

Module:6mm

Teeth number of wheel:84

Teeth number of pinion:15

Gear ratio:5.60

Max torque:10896N.m

Nom torque:8254N.m

Max holding torque:10896N.m

Radial static load:258KN

Axial static load:603KN

Radial dynamic load:158KN

Axial dynamic load:159KN

Weight:85Kg

Company Contact:

No member photo

Contact Name: Guoguo
Company Name: Unique Transmission Equipment（luoyang）co., Ltd
Email:

Tel: +86-379-64915181
Fax:
Street Address: No.22 Binhe Road,
New & High Tech Industry
Development Zone, Luoyang Area Of
China (henan) Pilot Free Trade Zone,
471000
Website: https://en.u-transmission.com
Member name: UniqueTransmission
Country:

China
Member Since: 16 June 2021
Total Leads: 196 UniqueTransmission Import Export Business Leads
Business focus: Slew Drive, Slewing Ring
Chat:
