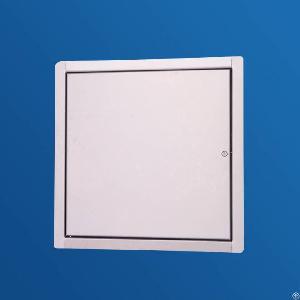

Product Description:
Stainless Steel Access Doors are designed to provide quick and easy access to fire, smoke and volume
control dampers, coils, filters, controls and other equipment mounted within air conditioning equipment or ductwork systems.The range of Stainless Steel access doors have been carefully selected to meet all requirements from single handed access to head and shoulder entry .
Component of Stainless Steel Access Panel
-Frame: die-formed 1.0mm flanged frame
-Door: Stainless Steel 304/Stainless Steel 316
-Double wall construction
-Latch: cam latches
-Gasketing: polyester open celled foam
-Insulation: 25mm thickness fiberglass insulation
Stainless Steel Access Door Specification :
1.Easy to install with notched edges, to provide for a quick and simple installation
2. High class quality perfect design, light weight but strong bearing capacity, no rusting and keeping forms.
3. Strong welded construction for ceiling or wall application.
4. The door leaf can be left or right opened. Fully concealed door hinge.
5. The stainless steel is of high durability and corrosion protection.
6. Screwdriver operated cam latch. Simple installation.
7. Ceiling and walls of building, hotels, shopping malls, hospital, school, office, houses and etc indoor decoration.
Model No Nomal Size Package Size
Stainless Steel Access Panel 8*8 200*200 10
10*10 250*250 10
12*12 300*300 10
14*14 350*350 10
18*18 450*450 10
20*20 500*500 10
24*24 600*600 10
30*30 760*760 10
