Steel Security Door Frame Roll Forming Machine

Posted at: Offers to Sell and Export | Posted on: Monday 31 October 2016 7:49 am | Poster last visit: Monday 31 October 2016 |

Product Category: Main » Industrial Manufacturing and Processing Machinery and Accessories » Industrial food and beverage equipment » Food preparation machinery » Forming machine » Steel Security Door Frame Roll Forming Machine


Product Photo:

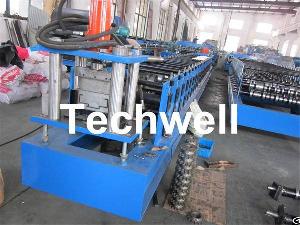

steel security door frame roll forming machine

Similar Products Catalog:
Products Photos Catalog Steel Security Door Photos Catalog

Product Description:

Door Frame roll forming machine for steel door frame

A). Main Components:


Decoiler

1 Unit

Feeding & leveling 1 Unit

Main roll forming machine 1 Unit

Hydraulic punching 1 Unit

Hydraulic cutting device 1 Unit

Hydraulic Station 1 Unit

PLC computer control 1 Unit

Output table 1 Unit

B). Main Specification:

Roll Diameter: 75mm

Forming Roller stand: 18 Group

Main Axis material: First grade 45# steel, heated and quenched

Roller material: GCr15 Steel, Quenched and heated process

Forming Speed: 0-10 m/min

Drive Type: 1.2” Chain of transmission

Chain Material: 45# steel.

Machine Base: 36# H steel

Thickmess of Fame Steel: 18mm

Main Power: 7.5KW

Applications:

Door frame, steel door frame, steel security door frame, rolling door frame, window frame...



Company Contact:

WuxiTechwellMachinery photo
Contact Name: Joanna
Company Name: Wuxi Techwell Machinery Co., Ltd
Email: Email
Tel: 86-0510-83133431
Fax: 86-0510-83133431
Street Address: Chong An District
Wuxi, Jiangsu Province 214000
China
Member name: WuxiTechwellMachinery
Country: China-CN China
Member Since: 15 July 2016
Total Leads: 40 WuxiTechwellMachinery Import Export Business Leads
Business focus: Cold Roll Forming Machines, Insulated Sandwich Panels Machines, Slitting Cutting Machines
