Steel Silo Corrugated Wall Sheet Roll Forming Machine

Posted at: Offers to Sell and Export | Posted on: Monday 31 October 2016 7:45 am | Poster last visit: Monday 31 October 2016 |

Product Category: Main » Industrial Production and Manufacturing Services » Machining and processing services » Forming services » Roll forming services » Steel Silo Corrugated Wall Sheet Roll Forming Machine


Product Photo:

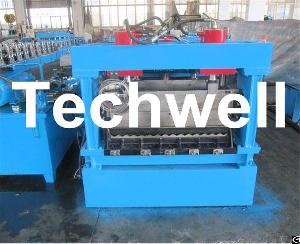

steel silo corrugated wall sheet roll forming machine

Similar Products Catalog:
Products Photos Catalog Steel Silo Corrugated Photos Catalog

Product Description:

Steel silo corrugated panel roll forming machine for making steel silo corrugated wall panel.

A). Work


Flowing:

Loading coil car -> Un-coiler -> guiding device -> feeder -> leveller -> shear roll former -> hydraulic press -> curving ->hydraulic cutting -> stacker -> PLC control

B). Main Specification:

 Suitable material: Galvanized sheet, Zinc Alumina sheet

 Material yield strength: 310Mpa

 Material thickness: 2.5-4.0mm

 Max. Feeding coil width: 1250mm

 Machine working speed: 4-8m//min

 Forming station: approx 18 stations

 Size of roll shaft: Ф120mm

 Roller material: GCr15, quenching HRC 58-62 °

 Total power: approx 180KW

 Power supply: AC440V+/-10%, 50Hz, 3 Phase

 Whole line dimention: about 35M X 4.5M ( L X W )

 Installation height: 4.5m

 Total weith of machine: approx 70 tons

Applications:

Steel silo corrugated sheet, steel silo corrugated panel, silo wall sheet, silo corrugated wall sheet, silo wall panel, silo corrugated wall panel, silo side panel, steel corrugated sheet, steel corrugated wall panel, steel corrugated panel



Company Contact:

WuxiTechwellMachinery photo
Contact Name: Joanna
Company Name: Wuxi Techwell Machinery Co., Ltd
Email: Email
Tel: 86-0510-83133431
Fax: 86-0510-83133431
Street Address: Chong An District
Wuxi, Jiangsu Province 214000
China
Member name: WuxiTechwellMachinery
Country: China-CN China
Member Since: 15 July 2016
Total Leads: 40 WuxiTechwellMachinery Import Export Business Leads
Business focus: Cold Roll Forming Machines, Insulated Sandwich Panels Machines, Slitting Cutting Machines
