Steel Strand Testing Machine

Product Category: Main » Laboratory and Measuring and Observing and Testing Equipment » Measuring and observing and testing instruments » Mechanical instruments » Test bar » Steel Strand Testing Machine

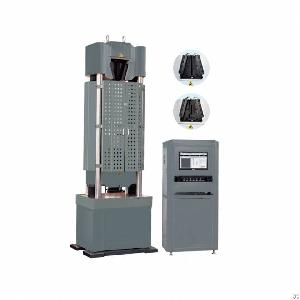

Product Photo:

Similar Products Catalog:

Steel Strand Testing Photos Catalog

Product Description:

Steel strand testing machine

Application:

This machine is mainly used in the tensile mechanical properties

test of the steel strand test. Attached with simple accessories and devices, it can bu used to test rebar, plastic, rubber, ceramic, building materials, metal material and so on.

Model (MFX/ MBX) 600 1000

Max. Test force (kN) 600 1000

Structure Four columns two ball screws centering adjustable, oil cylinder down-setting type

Testing machine class 1 class

Test force range 2%~100%FS (20KN~1000KN)

Deformation measurement range 2%~100%FS

Displacement resolution 0.01

Beam adjust speed 250mm/min

Piston stroke (mm) 250

Max. tensile space (mm) 1200

Effective tensile space (mm) 1000

Tensile fixtures configuration Built-in type hydraulic automatic clamping type

Standard steel strand clamping range Φ12.7mm, Φ15.2mm

Optional clamping diameter Φ17.80mm, Φ18.90mm, Φ21.80mm

Company Contact:

No member photo

Contact Name: Dan Feng
Company Name: Hyde Science And Technology Limited
Email:

Tel: 86-29-89182431
Fax: 86-29-89182431
Street Address: Road Tangyan
Xi'an, Shaanxi 710065
China
Website: http://www.globalhaide.com/
Member name: hydesciencechamber
Country:

China
Member Since: 26 August 2021
Total Leads: 76 hydesciencechamber Import Export Business Leads
Business focus: Environmental Chamber, Drying Oven, Vibration Shaker, Utm, Testing Machine
