Product Description:

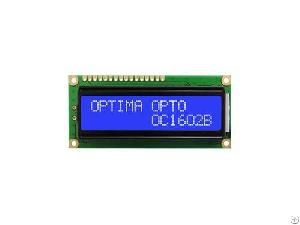

Model: OC1602B
Resolution: 16 x 2
Power supply: 5V
Interface: 6800
Ic: st7066
Duty/ Bias: 1/16 Duty/
1/5 Bias
Mechanical Data:
Monochrome Character LCD modoule is featured stable and standard design which enable to digitize your product through a single chip controlled. This type of LCD display is able to perform better than the LED segment display with user experience.
Our 16x2 LCD module can apply for industrial equipment such as medical, white goods, communication, entertainment field..etc. You may choose Reflective/ Tranflective/ Tranmission as polarizer film, TN/ STN/HTN/FSTN as LCD types, Yellow Geen/ Blue/ Black as LCD color, White/ Blue/ Yellow Green/ Green/ Red/ Amber..etc. as LED backlight color. Custom design per your needs is very welcomed too.
Item Dimension(m*m)
Module dimension: 80.0 x 36.0
View area: 66.0 x 16.0
Active area: 56.20 x 11.50
Dot pitch: 0.6 x 0.7
