Product Description:
StoneChlor – S series electrochlorination package is designed for industrial application that uses seawater
for cooling has the potential for the formation of bio fouling from the various organisms lurching in the oceans. The purpose of on-site generation sodium hypochlorite solution from seawater is to economically and safety produce this powerful biocide and disinfecting agent for industrial plant using.
Seawater based electro chlorinator is generally applied for protecting industrial cooling water, circulating water from bio growth, and being widely applied for the reason of its economic operating cost, as the raw material directly drained from the seawater and only electricity as well.
StoneChlor – S systems are the standard and preferred electrochlorination unit for bio fouling control in power plants, cooling towers, liquefied natural gas (LNG) terminals and desalination facilities, as well as coastal installations using seawater for cooling or other process needs all over the world.

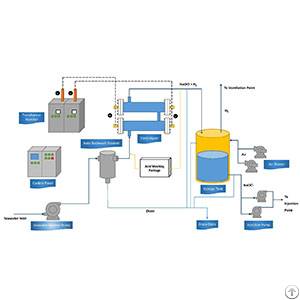

Typical Seawater Electrochlorination Process Description
Bio fouling control is one of the main challenges in the upstream processes of the power station is to protect pipeline and process equipment against biological fouling.
Restriction of cooling water flows, acceleration of corrosion and a reduction in the overall life of process equipment can all be controlled by the effective design of our electro chlorination package.
Seawater Electro chlorination system packages play an effective role in optimizing flow assurance.
Raw seawater is fed into the package inlet at the designed flow rate via a side stream from the main seawater process line.
Once controlled, the seawater is passed through the electrolyzer which are fed an electrical supply from the package rectifier.
Depending on pressure available this seawater flow will be pressure controlled or boosted to provide the optimum operating pressure and flow rate (required for the chosen electrolyszer configuration).
The rectifier is designed specifically for the requirements of the installed electrolyzers. It converts the AC platform input voltage into the required low voltage DC current and regulates this output to a selected and controlled level.
