Product Description:
Detail:

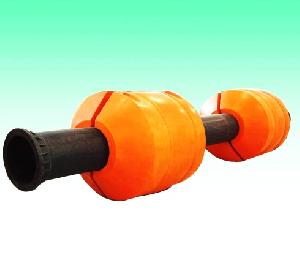

Dredger with the floating body size-density polyethylene
Pipe diameter
mm Steel thickness
mm
Floating body diameter
mm Floating body length
mm Plastic thickness
mm Floating net buoyancy
kg Notes
350 6 375 1000 1000 6.5 1100 Each / 4
414 8 430 1200 1200 6.5 2200 Each / 4
450 8 480 1300 1300 7 2300 Each / 4
500 8 530 1300 1500 7 2600 Each / 4
550 10 580 1400 1600 8.5 3200 Each / 4
600 10 630 1450 1700 9 3800 Each / 4
650 10 680 1550 1800 9 4020 Each / 4
700 12 730 1530 1940 10 4300 Each / 4
750 12 780 1700 1900 10 5400 Each / 4
800 15 830 1800 2000 12 6100 Each / 4
850 15 880 2000 2500 14 9200 Each / 4
900 15 930 2100 2500 14 11000 Each / 4
900 18 940 2100 2500 14 12000 Each / 4
Specific uses, shapes, models, specifications, dimensions, can be customized according to customer requirements.
