Product Description:

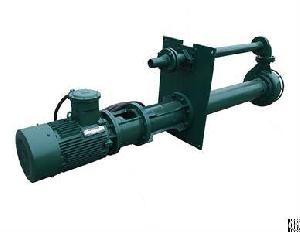

Submersible Slurry Pump
Solid Control Equipment
Submersible Slurry Pump for Heavy Oil
Submersible
slurry pump is used in oil drilling solids control system, pumping concentrated liquid, heavy oil, oil impurities, dirty fluid, mud and silt containing slag material and corrosive liquids. Submersible slurry pumps produced by DC have the advantages of high efficiency, maintenance free.heat-resistant, long service life, etc.
(1) Geometry of flow components conform to the flow regime of medium, reducing hydraulic losses caused by eddy and impact of local and on-way.
(2) Adopt power step-down to ensure no leakage of the slurry.
(3) Pump flow components adopt high hard alloy casting, the material have the advantages of high wear resistance, corrosion resistance, impact resistance and long service life.
Submersible Slurry Pump Parameters
Model Flow Lift(m) Speed(rpm) Efficiency (%) Power(kW) Dimension(mm) Weight (Kg)
m3/h L/S
Dc50yz20-18a 10 2.8 10 1430 42 2.2 2710×500×720 364
Dc50yz20-18 20 5.6 18 1430 42 3 2710×500×720 366
Dc50yz20-18 30 8.4 10 1430 47 4 2730×500×720 388
Dc50yz40-10 40 11.2 10 1440 56 5.5 2750×500×720 400
Dc50yz50-20 50 13.8 20 1440 56 7.5 2810×500×720 583
Dc80yz80-20a 80 22.2 21 1460 55 11 2650×500×720 610
Dc80yz80-20 90 25 15.6 1460 51 11 2750×500×720 720
Dc100yz100-30a 110 30.6 24 1470 54 18.5 2790×600×900 840
Dc100yz100-30 120 33.3 28 1470 56 22 2810×600×900 880
Dc100yz160-38 160 44.4 39 1480 52 45 2920×600×900 1300
Dc150yz250-40b 200 55.6 25 1480 49 37 3160×700×1130 1400
Dc150yz250-40a 240 66.7 31 1480 50 45 3190×700×1130 1500
Remark 1.submersible length of the pump is 1500mm or customized.
2.The motor power of centrifugal pump choosed is according to drilling mud specific gravity 1.2g/cm3.
3.Certificate: Ex dⅡ BT4.
