Product Description:
Summaiton Load Amplifier;Multi channel;
Specifications:
1.Input :0-20 mV
2.Output :0-5/0-10
V
4-20 mA
3.Precision:≤±0.1 %F.S
4.Power Voltage: 12VDC、24VDC、AC220V
5.Operational Temperature: -20~85 ℃
6.Ingress Protection: IP65
7.Size L*W*H:160*100*65
8.Feature:
1)、Can direct access 2~6 sensors, Each sensor can be corrected independently.
2)、Power surge protection.
3)、Input reverse protection and out protection.
4)、Current or voltage output form.

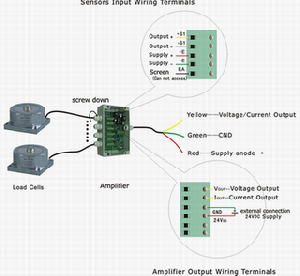

5)、Use wiring terminal to connection.
6)、With the installation holes in the shell, can be fixed on the platform .
