Product Description:

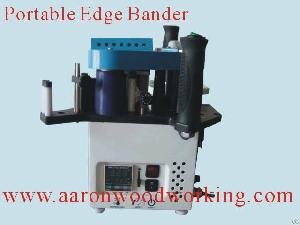

1. The Portable Edge Bander can finish wooden edge frames at straight edge, inside the arc, outside the
arc, curve and circle, the radius of the inside arc above 20mm
2. The Portable Edge Bander are using all types of banding at a wide range of widths and thickness, the banding material can be melamine paper banding, wooden veneer, vinyl(PVC or ABS) self-adhensive edge banding. The thickness of the edge banding within 0.3mm to 3.0mm. The edge band’s minimum/maximum width is 10mm to 55mm.
3. The Portable Edge Bander is light so it can be used for large sized wooden boards as well as incomplete wooden products. The board can be fixed in place while the edge bander is in operation. The length of frame is not limited. It can also be used for small sized wooden boards where the machine is fixed onto a conveyor belt or table with a stand. The process of edge banding is the same as normal banding work.
4.The Portable Edge Bander is suitable for medium to low temperature hot melt adhensives(melting point below 200℃). The temperature of the tank can be controlled with adjustable temperature control according to different banding thickness and material. The warm up time takes only 5 to 10minutes.
5. The machine’s speed is fixed at four meters per minutes, and there is an optional function of adjustable speed control from two meters per minutes to six meters per minutes under customer request.
6. All electronic component of machine comply with UL and CSA certification. The entire machine complies with CE certification and is lightweight with efficient quality at an affordable price.
Technical data:
