Product Description:

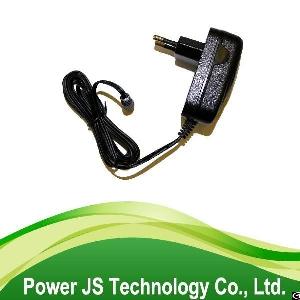

Jswax0512-30
supply factory12v 1a ac dc adapter eu us uk aus korea power plug
Features :
CEC compliant
EN60950;UL1310
compliant
Small Sized
Application :
Semiconductor refrigerator
Mini refrigeration equipment
Small home appliances
Any Protable Device or Machine
Input / Output Specification :
Input voltage : 100 - 240VAC(Limits : 90 - 264VAC)
Input frequency : 50 to 60Hz (Limits:47 - 63Hz)
Input current : 0.3A ~ 1.6A(rms) for 115 VAC;0.2 ~ 1.2A(rms) for 230 VAC
Output voltage : 3 ~ 24VDC ( ± 5% tolerance)
Output power range : 5 - 12W
Over voltage protection : 120 % min
Over current protection : All outputs protected to short circuit conditions
Short Protection : Auto Recovery
Load regulation : ±5% variations from minimum to maximum output current
General Specifications :
Operating temperature : 0 ~ 40°C
Storage temperature : -40 to 85 °C
Operating Relative Humidity : 5% to 95% non - condensing
Withstand Voltage : AC 3000V ( Min );5mA ( Max )
Insulation Resistance : DC 500V 100MΩ(Min)
